Supplier Wholesale ISO4064 Class B Irrigation Ductile Iron Flanged Woltman Water Meter Bulk Water Meter Factory Price Multi Jet Single Jet Dry Type Water Meter

Product Description

Supplier Wholesale ISO4064 Class B Irrigation Ductile Iron Flanged Woltman Water Meter Bulk Water Meter Factory Price Multi Jet Single Jet Dry Type Water Meter

Product Description SPECIFICATION:

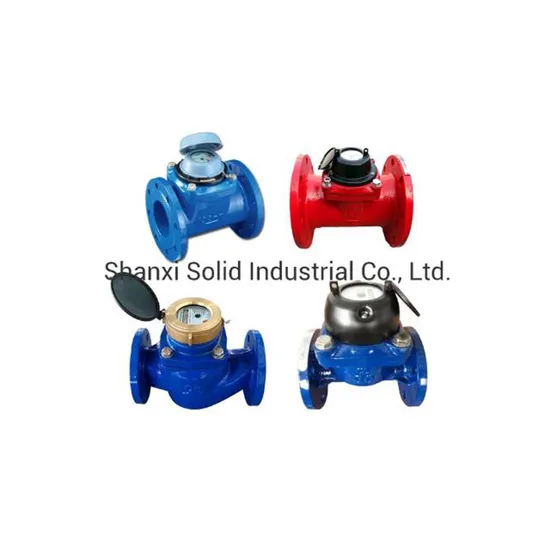

Woltmann water meter is a full helix type,magnetic drive,dry dial water meter with an interchangeable measuring unit.It has the advantages of small resistance,negligible head loss,big capacity,excellent accuracy,high measuring capacity,and long life if service.The measuring unit with sealed indicator offers the meters with very clear reading condition.This series can be equipped with a kind of remote transmission device.The generating volume is 0.3m³/Pulse and 1m³/Pulse.

Item	Specification
Operating condition	PN: 1.0/1.6 Mpa (10/16bar)
The water temperature	cold water up to 50ºC and hot water up to 90ºC
Standard	ISO 4064 Class B
Material	Cast iron
Size	DN40 - DN600
Pressure loss	ΔP25

Features:
1.the material is Environment Friendly
2..warranty: 2 years
3.Supply ability:100000 pcs per month
4.Free sample one piece is avaible ( but you need pay to us the sample fee and freight charge first to show the sincerity to coopertae with each other and we will return back the sample fee to you when we order to us
Application:
--Measuring the volume of cold (hot) water passing through the pipeline.
Feature:
--Removable element structure, easy installation and maintenance, register for universal use within this range detachable
without Removing the meter from the pipeline;
--Dry-dial, Magnetic drive sensitive action, small pressure loss;
--Vacuum sealed register ensures the dial keep free from fog and Keep the reading clear in a long term service;
--Selected high quality materials for steady & reliable characteristic;
--Technical data conform to international standard ISO 4064.
WORKING ENVIRONMENT:
Water temperature: 0.1°C~40°C (( 0.1°C~90°C forhot water meter)
Water pressure: ≤1Mpa(1.6MPa forspecial requirement)
MAIN TECHNICAL SPECIFICATIONS

Type	Size(mm)	Q3/Q1	Overload Flow	Permanent Flow	Transitional Flow	Min. Flow	Min. Reading	Max. Reading
			m3/h				M3
LXLC-50	50	50	31.25	25	2	0.5	0.0005	999,999
LXLC-65	65		50	40	3.2	0.8	0.0005	999,999
LXLC-80	80		78.75	63	5.04	1.26	0.002	999,999
LXLC-100	100		125	100	8	2	0.002	999,999
LXLC-125	125		200	160	12.8	3.2	0.002	999,999
LXLC-150	150		312.5	250	20	5	0.002	999,999
LXLC-200	200		500	400	32	8	0.002	999,999
LXLC-250	250		787..5	630	50.4	12.6	0.02	9,999,999
LXLC-300	300		1250	1000	80	20	0.02	9,999,999

DIMENSION

Type	Size	Length	Height	Connecting flange
	mm			ΦD1 outside diameter	ΦD2Bolt circle diameter	Connecting Bolts(n-M)
LXLC-50	50	200	261	165	125	4-M16
LXLC-65	65	200	271	185	145	4-M16
LXLC-80	80	225	276	200	160	8-M16
LXLC-100	100	250	289	220	180	8-M16
LXLC-125	125	250	299	250	210	8-M16
LXLC-150	150	300	319	285	240	8-M20
LXLC-200	200	350	346	340	295	8-M20(1.0MPa)
						12-M20(1.6MPa)
LXLC-250	250	400	434	395	350	12-M20(1.0MPa)
		450	434	405	355	12-M24(1.6MPa)
LXLC-300	300	450	459	445	400	12-M20(1.0MPa)
		500	459	460	410	12-M24(1.6MPa)

Detailed Photos
Related Products
Factory Shows

Certifications
Our Service
FAQ 1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.

6. What's your terms of payment?
A: T/T, L/C available, full protection for your orders.
Company Profile SHANXI SOLID INDUSTRIAL CO.,LTD. is located in the heavy industry province of Shanxi, China with rich resources of pig irons ,coke, steel and other industrial raw materials , we are one of the leading manufacturers of steel pipes, steel pipe fittings, steel flanges, valves, fasteners and other steel products according to various international standards such as ANSI, ASTM, ASME, BS, JIS, GB, etc. Our products are widely used in pipeline system for drinkable water, sewage, oil, gas, chemical plants and so on, and they have been widely exported to Europe, Middle East, South East Asia, Africa, Middle and South America for years. Up to now, we have exported our products to more than one hundred twenty countries, they are well accepted by the customers and have won good reputation both at home and aboard.The business principle of Shanxi Solid Industrial Co.,LTD is credit and sincerity . We are eager to get your inquiries and to establish long term mutual benefit cooperation relationship. We have our advantage in manufacturing and you have your advantages in sales, we are sure with our working together we can get one "win-win" situation .We hope we can grow together!
