Commercial Transparent Clear View Acrylic Polycarbonate or Tempered Glass Aluminium Alloy Framless Sliding Sectional Overhead Roll up Garage Door for 4s Shop

Product Description

Description Sectional door has a beautiful appearance, high strength, low noise and insulation properties, making it widely used in areas with high cleanliness requirements, such as factories, medicine, food, electronics, printing, supermarkets, etc.
Technical data:

Motorized Transparent Sectional Door Polycarbonate Garage door
Max dimension	width * height 12000mm*8000mm
Power supply	220±10%V, or 380V, 50/60Hz, IP55
Opening and closing speed	20-40cm/s
Door panel thickness	40mm/50mm/75mm/100mm/Back rib door
PU Denisity	48±2kg/m3
Wind resistance	28-35m/s (Class 10-12)
Sound insulation level	24DB
Insulation level	0.38W/M°C
Water tightness	30Pa
K Value	1.5W/M2.K
Thermal Conductivity	<= 0.033W/M.K

Structure Diagram:
Product Details:
1. Lifting way:
2. Motor and controller:
3. Panel (Finger safe stype): A.Two layer 1.2mm aluminum alloy, surface : Electrostatic coating. total thickness:40mm
4. Safety device: 1. Spring brake device: anti-broken 2. Service life: 100 thousand opening and closing
3. Driving force: 140N
4. Choosen according to door size, weight and lifting pattern
5.Accident Droping Safety Device Door bottom is equipped with droping avoid steel cord, securing the accident dropping within 5cm.
5.Guide rail
6. Seals: A.EPDM Sealing rubber is install onto top, bottom and perophery, cold resistant and anti-broken 7. Buffer and Hinges (2.5mm steel plate) 8. Manual Device ( Only for manual door)

9. Bottom Wireless Safety Airbag
You will receive:

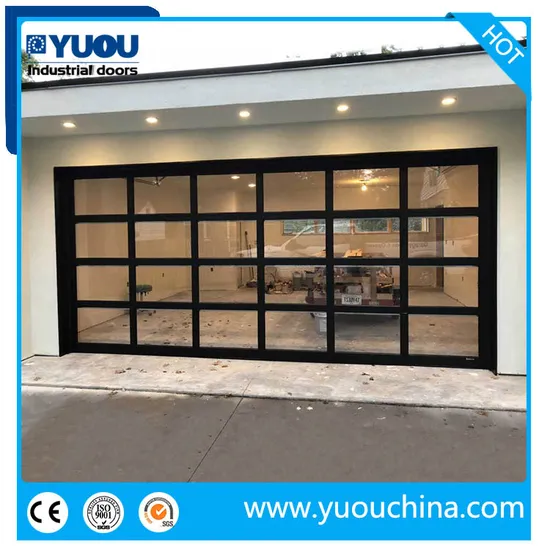

Products real shot:
