Small and portable temperature probe dry type calibrator

Product Details

Product Description

Product Description
Products Description

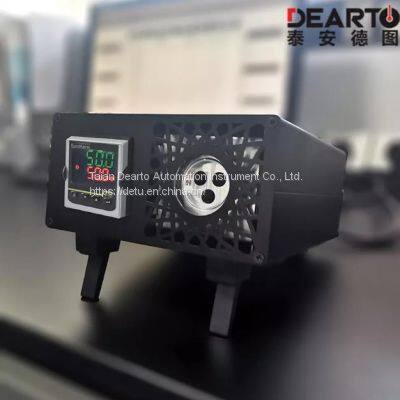

DT-ETC micro dry well temperature calibrator, is Taian DEARTO micro handheld dry type temperature calibration furnace, small and portable equipment, durable, simple operation, high accuracy. It is especially suitable for the on-site calibration of thermal resistance / thermocouple / temperature switch with various diameters, and the calibration occasions where fast calibration is required and the sensor is not convenient to disassemble.
Product Features
1. Small and light, strong and durable, only weighing about 3kg, convenient on-site measurement calibration;
2. Fast calibration, 15 minutes can be stable;
3. The sleeve is replaceable and supports custom jack for a variety of sensors
4. RS-485 communication interface
Product Paramenters

Model	ETC-150G			ETC-400G
Temperature range	-10℃~150 ℃			50℃~400 ℃
Display resolution	0.1℃
Standard thermal block insert aperture diameter	φ4, φ6,φ7			φ4.5,φ6.5,φ8,φ10
	Please indicate the insertion depth and outer diameter of the tested sensor when ordering (support customization)
Temperature fluctuation	≤±0.1℃
Radial uniformity	≤0.2℃
Axial uniformity	≤0.5℃ from bottom up to 40mm
Insertion depth	110mm
Casing size	Φ12.5mmX120mm(L)			Φ30mmX110mm(L)
Overall dimensions	230x180x125mm			220x160x100mm
Power	230W			350W
Power supply	AC220V,50Hz
