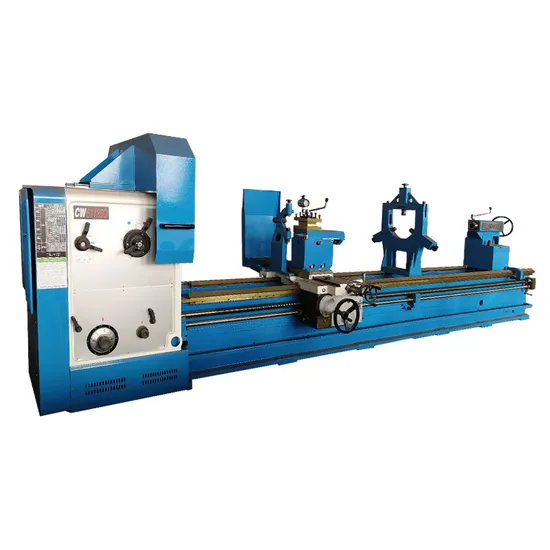

CW61100Q Heavy duty horizontal lathe machine for metal cutting
Basic Info.
Model NO.
CW61100
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Station Toolpost
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Spindle Bore
105mm
Max. Swing Over Bed
1000/1200mm
Distance Between Centers
850-11850mm
Machine
Lathe
Voltage
110V, 220V, 380V
Clour
Customer Appoint
Package Style
Fumigated Poly-Wood Case
Payment
T/T, Paypal, LC, West Union
Transport Package
Fumigated Poly-Wood Case
Specification
CE, SGS
Trademark
WMT
Origin
Chizhou, Anhui
HS Code
8458190000
Production Capacity
20 Sets Per Month
Packaging & Delivery
Package Size
450.00cm * 225.00cm * 198.00cm
Package Gross Weight
3500.000kg
Product Description
FeatureThis heavy duty horizontal face lathe series include : CW6163B,CW6180B,CW6280B, CW6110B.This lathe is a special purpose heavy duty horizontal face lathe and it is suitable for turning the internal/external cylindrical surface, conical surface, end face and so on with large-diameter, medium length for all kinds of workpieces .
Main SpecificationStandard Accessoires
| Swing over bed | mm | 1000 |
| Swing over carriage | mm | 680 |
| Center distance | mm | 1500/2000/3000/4000/5000 |
| Spindle hole | mm | Φ105 |
| Spindle front taper | mm | φ120 φ140 MT6 |
| Spindle speed | r/min | 18 kinds 8.5-800 |
| Longitudinal feed | mm/r | 64kinds 0.05-24.3 |
| Range 1:1 | mm/r | 0.1-1.52 |
| Range 16:1 | mm/r | 1.6-24.3 |
| Change gear micro feed | mm/r | 0.05-0.76 |
| Feed Horizontal: longitudinal | 1: 2 | |
| Rapid movement | mm/min | 4000 |
| Leadscrew pitch | mm | 12(metric)1/2"(inch) |
| Metric thread | mm | 50kinds 1-240 |
| Inch thread | 26kinds 14-1 t.p.i | |
| Module thread | mm | 53kinds 0.5-120 |
| Pitch thread | 24kinds 28-1 DP | |
| Lower cariaage travel | mm | 315 |
| Upper carriage travel | mm | 200 |
| Tailstock travel | mm | 250 |
| Tailstock taper | MT6 | |
| Main motor | kW | 11 |
| Rapid motor | kW | 1.1 |
| Coolant pump | w | 90 |
| Bed width | mm | 600 |
| Guideway hardness | 600RC52 | |
| Max loading weight | kg | 2500 |
4-jaw chuck, vibrashock
two centers, tool box with tools
wrenches, coolant system
follow rest, English Operation manual
Accuracy test report Schneider Electrical part
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
