Spiral Binding and Punching Machine for Notebook Exercise Book Sketch Book Booklet

Product Description

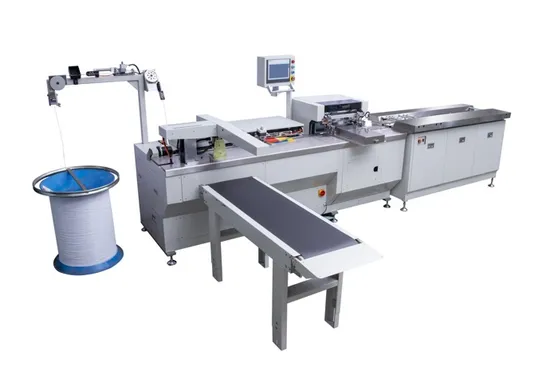

PBS-420 spiral punching and the binding inline machine is used for spiral books, magazines, and other printed material. It has multiple layers in the punching station and reliable jaws to transport papers. It can punch, auto forming, inserting, hooking, bending, auto book drop, and auto book collection to improve the production efficiency of spiral binding. We have a special design G-type hook that can be selected to produce high-end books. The max binding thickness can be up to 20mm and speed up to 1400 books/hour.
Technical data:

Min. binding width	72 mm
Max. binding width	420 mm
Min. Binding coil diameter	8 mm
Max binding coil diameter	25 mm
Selectable punch pins (QSA)	Yes
Binding pitch optional range	5, 6, 6.35, 8, 8.47mm
G type back hook scissors	14-25mm(customized if less than 14mm)
Stations:	Feeding, Punching, Aligning, Inserting 4 Stations
Punching Stoke:	5 strokes and max 3mm per stroke
Speed:	up to1400 books/hour
Power:	3PH 380V (other voltage on request)
Dimension (L×W×H):	6×1.3×1.7m

Size:
Operation:
Loading:
Exhibition:
Common questions and answers:
1. Are your a factory or trading company?
We are a professional double wire products machines maker since 2008 and we are the audited supplier in MIC supervised by BV.
2. What about the warranty time?
12 months when you receive the machine. When you get the machine we could send the engineer to supply training service for the first time but the traffic fees and the accommodation arrangement should be on your side. Automatic inline machine training need for 3-4 days and semi-auto machine for 1-2 days.
3. How many molds attached to one machine?
One machine attaches one mold and if you need more sizes, you could make the order.
4.How about spare parts?
Most of the electrical parts and bearings we used are international brands such as SIEMENS. You could buy them in your local market. For the molds, we have stocks of normal double wire binding size molds. The special mold sizes need 10-15 days.
5. Do you have a dealer in my country?
For the hot selling countries, we have the dealers could supply training service for you and detail your could contact with us.
