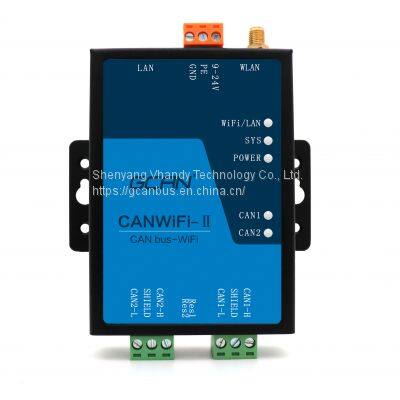

GCAN CAN to Wireless Router Repeater/Wifi CANBus Gateway the Converter with Wifi to Can Wifi Bridge Transmission Module

Product Details

Product Description

Product Description
Overview Quick DetailsPlace of Origin:Liaoning, China
Brand Name:GCAN
Model Number:GCAN-211
PC interface:Ethernet interface, RJ45
CANbus interface:Terminal blocks
Ethernet interface:10 / 100M adaptive
CAN interface:ISO 11898 standard, CAN2.0A/B
CAN baud rate:5Kbit/s~1Mbit/s
Electrical isolation:1500V DC-DC
Power supply voltage:9-30V DC
Power supply curren:50mA 24V DC
Packaging & DeliverySelling Units:Single item
Single package size: 26X16X6 cm
Single gross weight:0.500 kg
Package Type:Export carton
Lead Time:

Quantity(sets)	1 - 500	>500
Est. Time(days)	7	To be negotiated

Product Feature■ Power supply: 9~30V(50mA,24V DC)
■ Working temperature range from -40 to 85 °C
■ CAN-Bus supports CAN2.0A and CAN2.0B frame format, conform to ISO/DIS 11898 standards
■ CAN baud rates range from 5Kbps to 1Mbps
■ CAN-Bus interface with electrical isolation
■ CAN-Bus insulation voltage: DC 1500V
■ Standard Ethernet interface: RJ45
■ Supports 10 / 100M adaptive
■ The working port, the target IP and the target port can be modified
■ Support agreement: ETHERNET, ARP, IP, ICMP, UDP, DHCP, DNS, TCP
■ Compatible with SOCKET work (TCP Server, TCP Client, UDP)
■ 2.4G WLAN interface, in line with IEEE802.11a / b / g standard
■ AP mode and station mode

Connection
PC interface	Ethernet interface,RJ45
CAN interface	Terminal blocks
Interface characteristics
Ethernet interface	10 / 100M adaptive
CAN interface	ISO 11898 standard,CAN2.0A/B
CAN baud rate	5Kbit/s~1Mbit/s
Electrical isolation	1500V,DC-DC
CAN termination resistors	Has ben integrated,through the DIP switch to select whether to enable
Power supply
Power supply voltage	+9~30V DC
Power supply current	50mA (24V DC)
Environmental testing
Working temperature	-40℃~+85℃
Working humidity	15%~90%RH,no condensation
EMC test	EN 55024:2011-09 EN 55022:2011-12
Protection grade	IP 20
The basic information
Weight	220g

Typical application
■ CAN bus data remote transmission.
■ Underground data acquisition aystem of coal time.
■ Intelligent remote monitoring system for parking lot.
■ Power industry CAN bus interface equipment wireless remote distance monitoring
