Bk Series Medium-Heavy Metal Pipe Laser Cutting System

Bk Series Medium-Heavy Metal Pipe Laser Cutting System

US$30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
BK Series
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Free Electron Laser
Laser Technology
Laser Control Fault Cutting
Power
3000W-6000W
Model
Fct6020bk-K
Processing Range
φ12-200mm
Positioning Accuracy
12-140mm
Repositioning Accuracy
±0.05mm
Max. No-Load Running Speed
150m/Min
Max. Idle Speed
150r/Min
Max. Tube Weight
60kg
Feeding Dimension
≤ 1500mm
Transport Package
Wood
Specification
1
Trademark
QLTEK LASER
Origin
China
Production Capacity
1000 Pieces

Product Description

Product Description

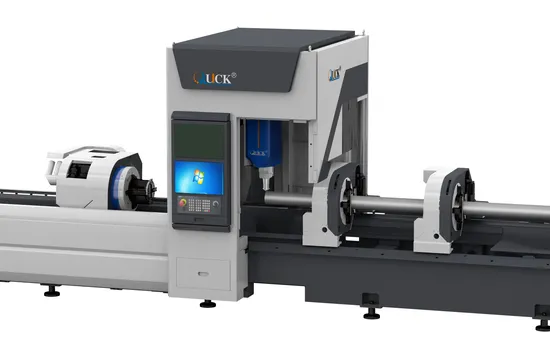

Three-chuck laser tube cutting machine
1. Zero-Tail Cutting with Three-Chuck System
1.1 Precision Avoidance
1.2 Intelligent Auxiliary Clamping
1.3 Independently Controllable

2. Tube-Cutting Auxiliary Blanking
2.1 Rapid Blanking Speed
2.2 Floating Lifting Blanking
3. Rotating Mechanism
A rotating shaft integrated at the cutting head allows a 45° rotation along the X-axis. With software control, it coordinates with the X-axis and AB axis of the chuck to enable precise groove cutting.
4. Bevel Cutting Head (Optional)
4.1 Independently Developed by QUICK LASER
4.2 ±45° Bevel Cutting
4.3 Supports 360° Cutting into Specific Shapes
5. Self-Centering Pneumatic Chuck
5.1 Automatic Lubrication
5.2 Gas Holding Pressure
5.3 Automatic Centering
6. Diversified Clamping Modes
Capable of clamping various pipe types within the chuck's caliber range, eliminating shape limitations and offering versatile processing options.

FAQ
1. Who Are We?
Based in Jiangsu, China since 2009, we serve the Domestic Market (70.00%), Western Europe (10.00%), Eastern Asia (6.00%), Mid East (6.00%), Southeast Asia (5.00%), and Eastern Europe (3.00%). Our team comprises over 1000 employees.
2. How Can We Guarantee Quality?
We always conduct a pre-production sample before mass production.
We always perform a final inspection before shipment.
3. What Can You Buy From Us?
Fiber laser cutting machines, laser tube cutting machines, laser sheet cutting machines, laser welding machines, and laser cleaning machines.
4. Why Should You Buy From Us Instead of Other Suppliers?
QUICK LASER boasts a 350,000 square meter production and R&D base, holds around 200 patents, is ISO9001 certified, and our main products have CE certifications.
5. What Services Can We Provide?
Accepted Delivery Terms: Yes
Accepted Payment Currency: Yes
Accepted Payment Type: Yes
Languages Spoken: Yes
