Xg0807HD: The High-Performance Electric-Hydraulic Scissor Lift

Product Description

Product Description

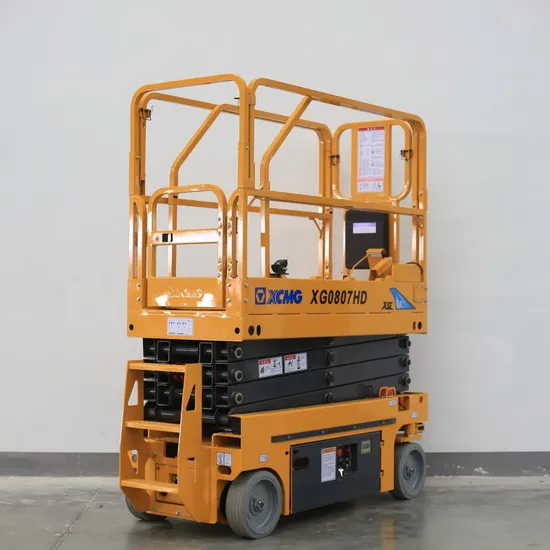

TheXG0807HD is an electrically - driven scissor - lift aerial work platform manufactured by XC MG.
1. Basic Parameters
Maximum Working Height: It has a maximum working height of 5.9 meters.
Maximum Platform Height: The maximum height of the platform is 3.9 meters.
Overall Machine Length: The length of the whole machine is 1450mm. Without the ladder, the length is 1290mm.
Overall Machine Width: The width of the whole machine is 760mm.
Overall Machine Height: The height of the whole machine is 2020mm, and when the platform is folded, the height is 1660mm.
Working Platform Dimensions: The length × width × height of the working platform is 1290mm × 700mm × 1209mm.
Extension Platform Extension Size: The extension size of the extension platform is 600mm.
2. Performance Parameters
Maximum Number of Workers: It can accommodate a maximum of 2 workers.
Rated Load of the Working Platform: The rated load of the working platform is 240kg.
Rated Load of the Extension Platform: The rated load of the extension platform is 100kg.
Travel Speed (Low/High Position): The travel speed at low and high positions is 4km/h and 0.5km/h respectively.
Minimum Turning Radius (Inner/Outer Wheels): The minimum turning radius of the inner and outer wheels is 0.4m and 1.55m respectively.
Lifting/Lowering Time of the Working Platform: The lifting time of the working platform is 27 - 37 seconds, and the lowering time is 23 - 33 seconds.
Maximum Gradeability: The maximum gradeability is 25%.
Tilt Warning Angle (Lateral/Front - rear): The lateral and front - rear tilt warning angles are 1.5° and 3° respectively.
Total Mass of the Whole Machine: The total mass of the whole machine is 900kg.
3. Power System
Battery: It uses 2×12/75v/ah maintenance - free lead - acid batteries or lithium - ion batteries, equipped with a 24/15v/a charger.
4. Tire Specifications
The tire specification is 254×76.
5. Product Features
Compact Design: Its compact design enables it to pass through narrow aisles, doorways and elevators, making it suitable for a wide variety of working environments.
Efficient Drive System: The DC - driven system is more energy - efficient than the hydraulic - driven system, and the proportional drive enables smooth control.
Good Environmental Performance: Zero - emission and non - marking tires ensure environmental - friendliness during operation.
High Maneuverability: The zero - turning radius gives it better maneuverability and allows for flexible operation in a confined space.
