Water Ring Plastic Pelletizer PVC Plastic Granules Pelletizing Machine
| US$10,000.00-300,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
GL400
Material Processed
Film
Plastic Type
PE
Screw
Single-Screw
Automation
Automation
Computerized
Computerized
Certification
ISO9001:2008
Machine Color
Grey &Green or Cusomized
OEM
Acceptable
Material
SUS 304
Customized Scheme
Acceptable
Original
Zhangjiagang, China
Capacity
300-3000kgh
Material Type
PP/PE/ABS/PS/Pet/PC/PVC
Voltage
380V or Customzied
Production Line Space
20*3*3.5m or According to Workshop Space
Applicable Industries
Plastic Crushing Washing Recycle
Power
100kwh or According to Production Line Scheme
Free Spare Parts
Yes
After -Sales
Yes
Labor Needed
2-3workers or More
Price
According to Production Line Capacity and Scheme
Transport Package
Exporting Container
Specification
40cbm
Trademark
Greenlandplast
Origin
China
HS Code
8477
Production Capacity
30sets /Year
Packaging & Delivery
Package Size
159.00cm * 195.00cm * 250.00cm
Package Gross Weight
2500.000kg
Product Description
Greenlandplast pelletizing line(water ring cutting type) This Recycled Plastic Machines Waste PP PE Plastic Granulator is mainly used for plastic regrind flakes recycling pelletizing . The material is fed by screw feeder or vacuum feeder, then the material is fed to the extruder screw through a quantitfy feeding device. The screw is specially designed for the recycled material recycling pelletizing , and has advantage of fast feeding and resistance. With natural venting and vacuum system; can effectively discharge the water inside the material; the extruder uses cast aluminum heaters, durabl. Customers aso may choose two-stage pelletizing system, use the two extruders pass the secondary filtration to make the pellets be cleaner and higher quality;Product Parameters
Technical dates
| Model | Screw Diameter(mm) | L/D | Capacity |
| GL85-85 | 85 | 33/10 | 100-200kgh |
| GL100-100 | 100 | 33/10 | 200-300kgh |
| GL130-130 | 130 | 33/10 | 300-450kgh |
| GL160-160 | 160 | 33/10 | 450-600kgh |
| GL180-180 | 180 | 33/10 | 650-750kgh |
| GL200-200 | 200 | 33/10 | 750-1000kgh |

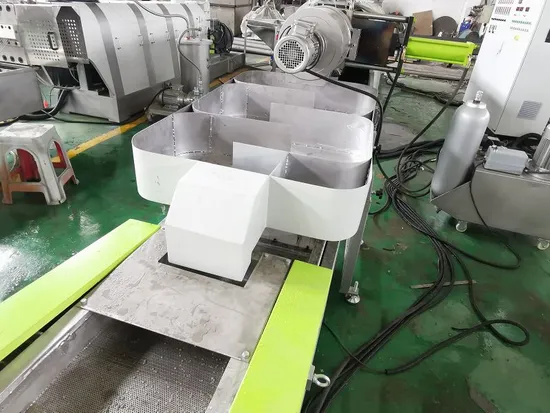

Quantificational feeder
Feed material into extruder smoothly and evenly First stage extruder
38crMoAl screw&barrel with nitriding treatment ,with vacuum exhaust system,with hydraulic screen changing system Sceond stage extruder
38crMoAl screw&barrel with nitriding treatment ,with vacuum exhaust system,with hydraulic screen changing system
Water-Ring cutting system
Water-ring die-head cutting type, cutting speed frequency controlling ,SKD material blade,pellets size uniform and beautiful Vibrator dewatering system
Vibration dewatering method, saving power consumption and low noise,high performance of pellets dewatering drying ! Stainless steel 304 material.
Dewatering type blower&hopper storage
Vibration dewatering method, saving power consumption and low noise,high performance of pellets dewatering drying !Stainless steel 304 material.
Packaging & Shipping
