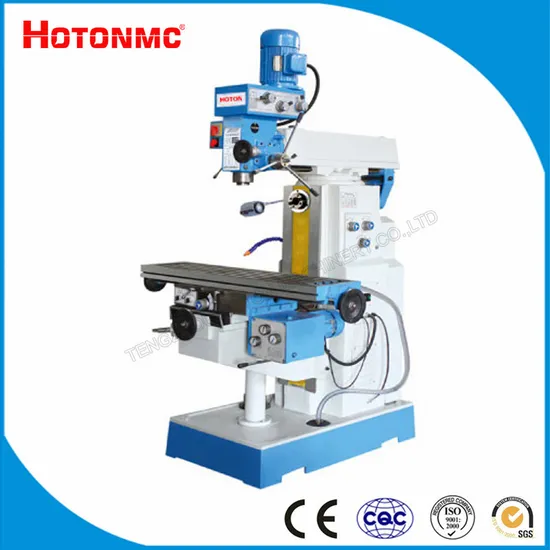

Horizontal Vertical Knee Type Drilling Milling Machine (ZX6350D)
| US$4,000.00-6,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX6350D ZX6350C ZX6350A
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Drill Capacity
50mm
long travel
640
cross travel
240mm
vertical travel
430mm
Table Size
1120X280mm
Transport Package
Plywood Case
Specification
1300KGS
Trademark
HOTON
Origin
Shandong, China
HS Code
8459590000
Production Capacity
20 PCS/Month
Product Description
UNIVERSAL DRILLING MILLING MACHINE:
compound sliding table with scale and adjustable stops for coordinate drilling and light milling work
quiet operation with oil-bath lubricated gears for long tool life and durability
the milling machine's high-quality spindle bearing can withstand higher loads for the long term
Gear drive for vertical milling / horizontal milling,
Workbench feed X / Y to automatic, Z to manual,
Milling head can be rotated 45 degrees,
Spark quenching machine.
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Product main technical Specifications:
SPECIFICATIONS:
| SPECIFICATIONS | UNITS | ZX6350D |
| Table size | mm | 1120x280 |
| T=slot number/width/pitch | mm | 5/14/50 |
| Longitudinal travel | mm | 640 |
| Cross travel | mm | 240 |
| Vertical travel | mm | 430 |
| Vertical milling capacity | mm | 32 |
| Face milling capacity | mm | 120 |
| Drilling capacity | mm | 50 |
| Longitudinal feeds range | mm/min | 15.1-266.5(6rank) |
| Cross feeds range | mm/min | 15.1-266.5(6rank) |
| Vertical milling spindle travel | mm | 120 |
| Spindle nose to table surface distance | mm | 100-530 |
| Travel of movable arm | mm | 360 |
| Vertical milling spindle taper | MT | MT4 |
| Horizontal milling spindle taper | MT | MT4 |
| Vertical milling spindle speeds | r/min | 115-1750(8rank) |
| Horizontal milling spindle speeds | r/min | 32-1320(12rank) |
| Vertical milling motor | KW | 1.5/0.85 |
| Main motor | KW | 2.0/2.4 |
| Overall dimensions(Lx W x H) | mm | 1400x1300x2100 |
| Net weight | KG | 1300 |
| Contact Us: |
| Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
