High Quality Yvo4 Yttrium Vanadate with Good Light Transmittance

Product Description

Products Description

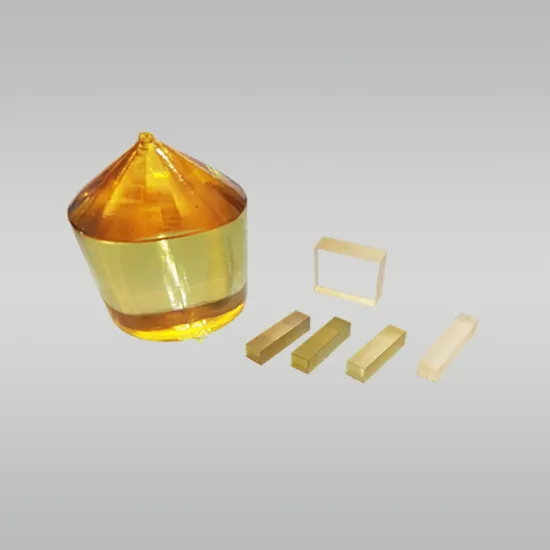

YVO4 YVO4 Yttrium Vanadate, undoped YVO4 crystal is an excellent birefringent optical crystal, with good light transmittance in the wide range of visible and near infrared, large refractive index value and birefractor index difference. Compared to other important birefringent crystals, the YVO4 Crystal has higher hardness than Ice Continent Stone (CaCO3Single crystal), good machining performance, insoluble in water, and can be artificially grown (it needs to rely on natural resources); YVO4 crystal is easier to grow a large pieces of high quality crystal, than Rutile single crystals (TiO2), the price is much lower than Rutile. These excellent features make the YVO4 Crystal rapidly become a new type of birefringent optical material, widely used in the photoelectric industry. In optical fiber communication equipment, it requires a lot of pure YVO4 crystal made of various spectral and polarization components, such as optical isolator, circulator, optical splitter, and grand series polarizer, etc. YVO4 crystal and Rutile crystal combination, also can get the ideal temperature compensation effect, greatly improve the temperature stability of optical communication system.
Product Parameters

Transmission range	0.4-5 μ m high penetration
Crystal structure	Tetragonal system, space group D4h
Lattice constant	a=b=7.12Åc=6.29Å
Density	4.22g/cm3
Moh's hardness	5. Approximate glass
Hygroscopy	Not easy to tide solution
Coefficient of expansion due to heat	αa= 4.43×10-6/Kαc= 11.37 ×10-6/K
Thermal conductivity coefficient	//C: 5.23 W/m/K ⊥C: 5.10 W/m/K
Crystal class	Positive uniaxial no=na=nb, ne=nc
Thermo-optical coeffecient	dna/dT = 8.5×10-6/Kdnc/dT = 3.0×10-6/K
Refractive index Birefringent index (Δn = ne-no) Discrete angle @ 45° (ρ)	no= 1.9929, ne= 2.2154, Δn = 0.2225, ρ= 6.04°@630nm no= 1.9500, ne= 2.1554, Δn = 0.2054, ρ= 5.72°@1300nm no= 1.9447, ne= 2.1486, Δn = 0.2039, ρ= 5.69°@1550nm
Sellmeier Equation (λ in μm)	no2= 3.77834 + 0.069736/(λ2- 0.04724) - 0.0108133λ2 ne2= 4.59905 + 0.110534/(λ2- 0.04813) - 0.0122676λ2

			YVO4	TiO2	CaCO3	LiNbO3
Thermal dilation (/)	c-axle	11.4×10-6	9.2×10-6	26.3×10-6	16.7×10-6
		a-axle	4.4×10-6	7.1×10-6	5.4×10-6	7×10-6
Refractive index	no	1.9447 @ 1550nm	2.454 @ 1530nm	1.6346 @ 1497nm	2.2151 @ 1440nm
		ne	2.1486 @ 1550nm	2.710 @ 1530nm	1.4774 @ 1497nm	2.1413 @ 1440nm
Birefractive index (ne-no)			0.2039 @ 1550nm	0.256 @ 1530nm	-0.1572 @ 1497nm	-0.0738 @ 1440nm
Moh's hardness			5	6.5	3	5
Hygroscopy			deny	deny	weak	deny
Transmission range			0.4-5μm	0.4-5μm	0.35-2.3μm	0.4-5μm

Aperture	1.0×1.0 mm- 4 × 4 mm
External diameter tolerance	+/-0.05mm
Wedge angle tolerance	+/-0.1°
Light axis orientation accuracy	+/-0.5°
Flatness	λ/4 @ 632.8 nm
Finish	20/10
Reflection reducing coating	R <0.2% @1550 or 1310nm
Regular size	1.25mm 1.25mm 0.5mm 13° / 15° wedge angle, phi = 22.5 °
