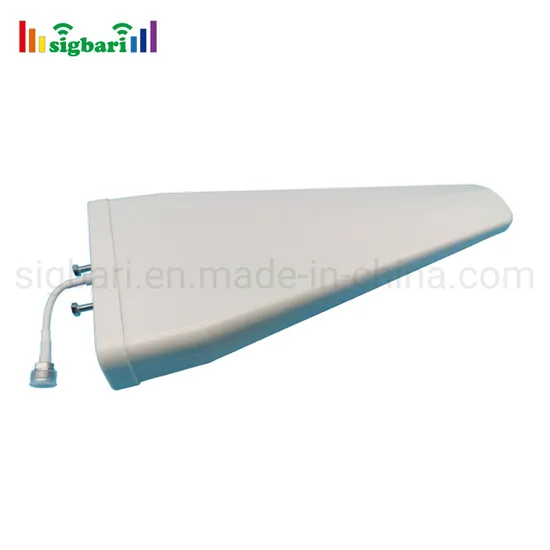

Outdoor Lpda Antenna Donor Antenna External High Gain Log-Periodic Antenna 12dBi
Basic Info.
Model NO.
SG-OLA-12
Gain
12dBi
Function
Working for Repeater 2g 3G 4G Signal Booster
Receiving Distance
5~10 Km to Signal Station
Warranty
2years
Usage
Communication Antenna, Broadcasting Antenna
Operating Wavelength
Microwave
Material
Al
Directionality
Directional Antenna
VSWR
1.5~2
Base Antenna
Directional Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Wire Antenna
Dimensionality
Two-Dimensional Antenna
Usage Occasion
Home, Office, Shopping Mall, Packing Lot, Boat etc
Transport Package
Neutral Packing
Specification
440*207*65mm
Trademark
Sigbari
Origin
China
HS Code
8517707090
Production Capacity
5000PCS/Week
Product Description
Outdoor LPDA antenna Donor antenna external High gain Log-Periodic Antenna 12dBi2g 3g 4g Antenna Specification
| Electrical Parameters | |
| Model | SG-OLA-12 |
| Frequency Range | 698-960 / 1710-2700 MHz |
| Gain | 11 / 12 dBi |
| Horizontal-3dB Beamwidth | 75° |
| Vertical-3dB Beamwidth | 45° |
| VSWR | ≤1.8 / ≤1.5 |
| Input Impedance | 50 Ω |
| Polarization | Vertical |
| Max Input Protection | 50 W |
| Connector | N-Female |
| Lighting Protection | DC Ground |
| Mechanical Parameter | |
| Antenna Dimension | Ф440×207×65 mm |
| Weight | 0.96 kg |
| Cover Material | ABS |
| Pole Diameter | Ø38- Ø65 mm |
| Installation | Installation on a pole |
| Rated Wind Velocity | 60 m/s |
| Operating Temperature | -40° ~ +60° |
Packing information:
20pcs / carton boxes Size:77*35*46cm / Gross weight: 25kg
How is 2g 3g 4g Antenna working for cellphone signal booster?
if any questions or problems plase feel free to contact me, Send me email or chat with me directly for your requirements!
Thx for inquiring-Sigbari!
& you are welcome to visit us!
