Basic Info.
Customized
Non-Customized
Main Voltage
3VDC Battery (Non-Removable)
Operating Current
Standby Status≤15ua, Alarm Status≤20mA
Co Detection Range
0-999 Ppm
Alarm Level
60~90 Minutes @ 50ppm
Materials and Colors
ABS, White
Operating Temperature
-10 to 40°c (14~104°f)
Transport Package
Carton Box
Specification
104mm*104mm*39.2mm
Product Description

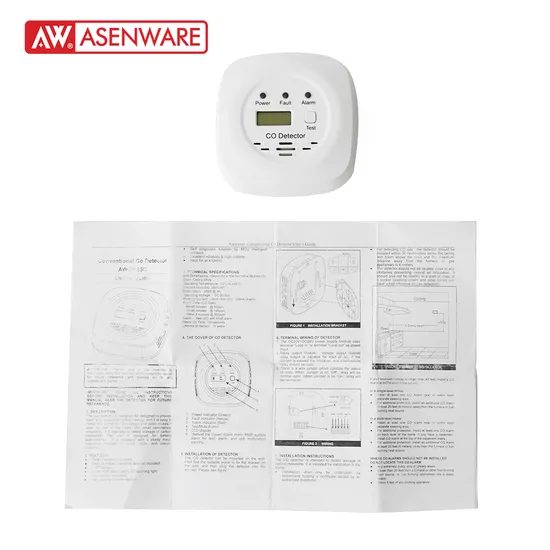

Product Description Standalone LPG Gas Detector The standalone Carbon Monoxide detector AW-D125S is designed to provide open area CO detection without wiring, and it is easy to install and construct. the design and color make it ideal for use in the home. It is intended to detect leakage of carbon
monoxide. The unit is designed for battery applications.
It is equipped with a sturdy mounting bracket for quick, easy, and secure installation. Features 1. Low Standby Current
2.High -Capacity batteries 3. LCD display
4.Wide detection range
5.Low battery/Fault indication 6.10 Years sensor lifetime 7.Meets all requirements of standard EN 50291-1-2018
Model | AW-D125S |
Main Voltage | 3Vdc Battery (non-removable) |
Operating currenT | Standby status≤5mA, Alarm status≤20mA |
Co detection range | 0-999 ppm |
Alarm Level | 60~90 minutes @ 50ppm 10~40 minutes @ 100ppm Within 3 minutes @ 300ppm |
Materials and colors | ABS,White |
Sensor lifetime | 10 Years |
Mating Host | AW-CFP2166 series fire alarm control panel |
Operating Temperature | Class A temperature range: -10 to 40°C (14~104°F) Humidity: 5 to 95% RH, non-condensing |
standard | EN 50291-1-2018 |
Size | 104mm*104mm*39.2mm |
Weight | About 144g (with package) About 175g (without package) |
