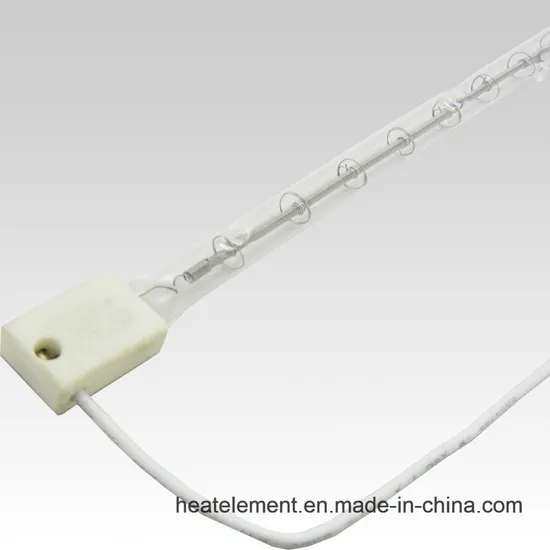

Clear Quartz Short Wave Infrared Heating Lamps for Pet Blowing Machine

Product Description

Pet preforms are manufactured by injection moulded process. In order to blow them into bottles, they need to be reheated. The properties of PET make them readily absorb the heat generated by infrared lamps, specially shortwave.
The preforms are held on two rails or on a jig and move through a tunnel where a number of shortwave infrared lamps are installed. The tunnel will have a number of heating zones depending on the wall thickness of the preforms and blowing capacity (number of bottles per minute). As the preforms move through the tunnel, they are rotated so that the entire preform gets uniformly heated. The neck of the preforms is not to be heated as its shape must remain the same. There is chilled water circulation in the Aluminium rails which hold the neck of the preform so ensure neck does not get heated up.
The shortwave radiation emitted by the IR lamps is readily absorbed by the PET preforms. Some of the radiation passes through the preform and is reflected back onto the preform by the reflector positioned behind the preforms. This way heat loss is kept to a minimum.
The lamps are mounted on adjustable supports to provide flexibility in moving the lamps back or forward. This is required to cater to preforms of different sizes and wall thicknesses. In each heating zone cooling fans are installed to ensure that the IR lamps and the reflectors do not overheat. It is important to keep the ends of the lamps cool otherwise the connecting leads can get damaged.
After exiting the IR tunnel, preforms move to a blowing station and are finally blown into the shape of a bottle.
We can offer lamps for most of the Pet blow moulding machines ex stock.
Features:
1. Halogen type
2. The ideal, high-power heat source for a wide range of industrial heating applications
3. Economic heat source, 90% of energy is transmitted as Infrared heat
4. Short wave Infrared radiates
5. Clean, Safe, Green
6. Compact Infrared heat source
7. Fast response, reaching 100% power after be electrified and fast to reducing the temperature
8. Long Lifetime, Rating life 5000 hours
Figure:
Advantages:
Without white reflector IR heat lamp radiate 50% of the infrared radiation to the rear and 50 forwards.
Consequently, only 50% of the potential radiation is available to heat a surface. With the Heatelement
White reflector IR heat lamp 80% of the available radiation is directed at the workpiece surface.
Applications:
Space heating
Drying of lacquer, paint, printing ink
Curing, oven

Plastic thermoforming

Blowing of PETP
Catalogue:
Please E-mail us to get our catalogue, or you can send us the specifications match your application.

Workshop
All our lamps were manufactured by experienced staff
Lamp Quality & Lifetime
We guarantee 5000 hours lifetime for the short wave infrared heating tubes.
Packing and Shipment
We pack the lamps with PE Foam, and then pack them with individual white box, then put them in one carton and then crate them with export standard, our lamps can reach any country in 3-4 working days safely.
