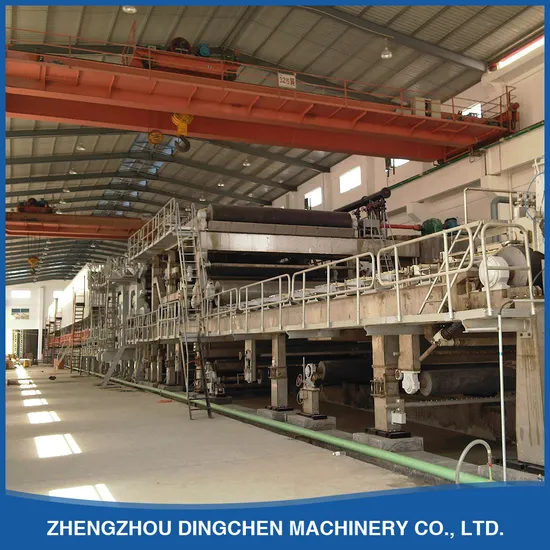

2640mm 100tons/Day Second Hand Doublr Wire Kraft Paper Production Line

Product Description

.Technical parameter:

1.raw material	waste paper, old carton, wood pulp
2.Output paper	kraft paper/ corrugated paper;
3.output paper width	2640mm;
4.Capacity	100T/D;
5.Working speed	300m/min
5.Width of cylinder mould	3050 mm;
6.Rail gauge	3500mm
7.Drive way	AC inverter speed, section drive;

.structure and characteristic of main part:
1.Wire section: top wire table width 9m, below wire table width 18m, frame welded by #45 steel plate. with 1 set of open-type stainless steel head box and ceramics vocuum suction box, with double evener rolls. 2.Press section: (1st press) one big diameter press, (2nd press) Φ1100mm×3050mm×3500mm marble roll and rubber roll press, equipment with pneumatic pressure device. 3.Dryer section:Φ1500mm×3050mm×3500mm alloy dryer can 22+12 sets,with dry screen device,scraper 34 sets, semi enclosed dryer hood 2 group. 4.Sizing section:Φ750mm×2950mm×3500mm sizing machine 1 set. 5.Calender section: Φ500/550mm two roll calender machine 1 set.
6.Winding section: 2640mm horizontal pneumatic winding machine.
7.Rewinder section: equipped with 2640mm frame-type rewinder 1 set
III.Main machine list:

No	Iterms	Quantity
1	Open-type head box	1
2	Vocuum suction box	all
3	Chest roll	1
4	Vocuum couch roll	1
5	Forming plate	All
6	Foil board	All
7	Water leg dilution tank	1
8	Drive roll	All
9	Pneumatic regulator	1
10	Electric felt tightener	1
11	Chest roll loading device	1
12	Marble press roll	1
13	Rubber press roll	1
14	Big diameter press roll	2
15	Φ1500mm×3050mm×3500mm alloy dryer	34sets
16	Horizontal pneumatic winding machine	1
17	Frame-type rewinding machine	1
18	Sizing machine	1
19	Calender machine	1
20	Liquid ring vocuum pump	2sets
21	Press screen	1
22	motor	All
23	Frequency converter	All
24	Closed gearbox drive	1
