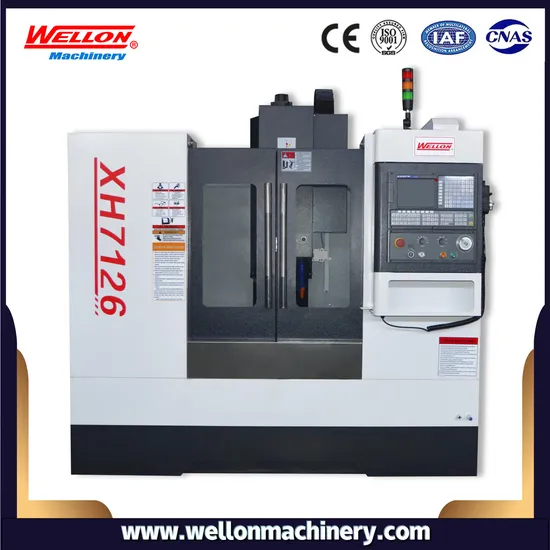

Hot Sale Small CNC Milling Machine XH7126 Mini Vertical Machining Center

Product Description

Product Description

Hot Sale Small CNC Milling Machine XH7126 Machining Center

Detailed Photos
Product Parameters
Technical parameter:

Item	Unit	XH7126
X axis travel	mm	500
Y axis travel	mm	350
Z axis travel	mm	450
Spindle nose to worktable	mm	90-540
Spindle center to column	mm	350
Leadscrew diameter X,Y,Z	mm	Φ25
Linear guideway width X,Y,Z	mm	25/25/25
Worktable Length	mm	700
Worktable width	mm	260
Max loading capacity	kg	200
T-slots(NO./width/pitch)		3*16*75
Spindle taper		BT40
Spindle speed	rpm	8000
Main motor power	kw	3.5/5.5
Fast moving speed (X/Y/Z)	m/min	6/6/10
Cutting speed	mm/min	1-3000
Feed motor torque	N/M	6/6/10
Feed motor power	kw	1.0/1.0/1.5
Capacity	pcs	Umbrella type 12
Max tool diameter	mm	90
Max tool weight	kg	8
Max tool length	mm	250
Positioning accuracy	mm	0.02
Repeat accuracy	mm	0.01
Length	mm	2600
Width	mm	1950
Height	mm	2400
Weight	kg	2000

Standard accessories:
Fanuc 0i-MF(5) controller
Spindle 8000rpm,belt type
12 tools umbrella type magazine
3-axis Linear guideway from Taiwan Hiwin/PMI
Ball leadscrew from Taiwan Hiwin/PMI
Full closed covers
MPG
Heat exchanger in cabinet
USB+ Ethernet Interface
Work lamp
Tir-color alarm lamp
Air gun+water gun
Automatic lubricating
Coolant system
Leveling pad
Tools and toolbox
Optional accessories:
Direct driven spindle from Taiwan with 12000 rpm
Spindle oil cooler
Spiral type chip conveyor
Chain type chip conveyor
Flushing system
Nitrogen balance cylinder
Spindle center water spray 20bar
Spindle center water spray 30bar
Oil Skimmer
4 axis 255mm+tailstock(Fanuc)
