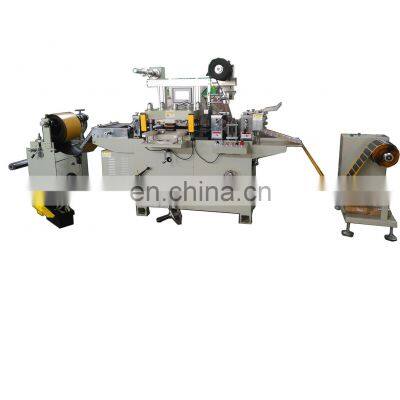

mylar cutter with automatic die cutting

Product Description

Product Description
mylar cutter with automatic die cutting Main Technical Parameter: Model350B masking tape die cut 420B masking tape die cut Cutting speed20-200 (t/m)20-200 (t/m)Max unwinding diameter450mm450mmMax web width320mm420mmMax mould cutting area320x380mm420x420mmOrientation accuracy±0.10mm±0.10mmMotor power3kw4kwPower voltage220v±10%380v±10%Machine weight2200kg2800kgMeasurement2600x950x1400mm2600x1050x1800mm Features:1. Max web width: 320mm/420mm2. The telerence: +/-0.2mm, precision: 0.1mm3. Material thickness range: 0.05-3mm4. Delivery time: About 15days5. Payment: T/T6. Manufacture experience: 30 years7. Export experience: 20 yearsCharateritics:1. The machine enjoys multi-layer sticking, partial sticking, feeding- filming-die cutting- waste draining- slitting-rolling2. All of them are completed by the computer control by one turn.Applicable Material:1. Sticky production: Diversified electronic, electrical appliance, special mobile phone rubber cushion, silicon rubber cushion, magic tape, electric conductive tape, powerful double side adhesive, SUNEAST 3M, Sony special binding products.2. Dustproof materials: Cosmetic cotton, camera cotton, high density sponge, filtering sponge, dust net and non-woven fabric3. Shock absorbing products: EVA tape, rubber cushion, PORON cushion, 3M, inflammable retardant EVA, high foam4. Insulation, EMI: Fireproof paper, aluminum foil, copper foil, PVC, PET, brown paper, sponge sheath, pearl cotton sheath5.Heat insulation material: Silicon sheet, transparent mica, fiber cloth, heat insulation cotton (fabric) Optional Configurations: 1. Hot stamping 2. Punching After-service:1. Warranty for machine: 12months2. After-service: A reply within 24 hours3. A free training in our factory available before delivering machines mylar cutter with automatic die cutting Application :
