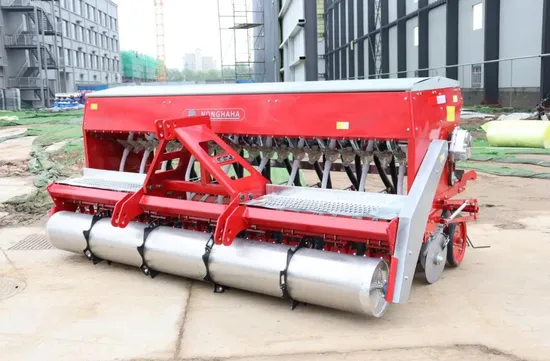

20 Rows High-Efficiency Wheat Seeder for Maximum Crop Yield

Product Description

Nonghaha brand wheat seeder

2BX, 2BXF, 2BX-J and 2BXF-J series wheat planters are designed and manufactured by our company to meet the requirements of different regions, different soil and different agronomy.

Use and characteristics

1. 2BXF series seeder, suitable for grain drilling in plain and hilly areas, and can Fertilize at the same time. And the amount of fertilizer applied is limited according to the local actual situation. The amount of fertilizer applied in mu shall not be allowed more than 15 kg.
2. The machine is used with large tractors, using three-point suspension and hydraulic lift the seed discharge device is driven by the ground wheel and easy to use. A job can be completed ditching, sowing, fertilization, suppression, soil covering and other operations.
3. Light double disc furrow opener, using spring floating four-link mechanism, can effectively avoid overall leakage due to disc obstruction. It can channel and apply smoothly in the soil of straw returning to the field fertilizer, sowing.
4. Sowing depth can be adjusted, sowing amount can be adjusted.
5. The parts of various models of this series of seeder have strong versatility and interchangeability.


Product Parameters

Item	Unit	2BXF-16D	2BXF-18D	2BXF-20D	2BXF-25D	2BXF-28D
Name	/	Wheat seeder
Structure	/	Suspension type
Power	kw	58.8 ~73.54	58.8 ~73.54	66.19~88.25	88.25~110.32	110.32~147.09
Size	mm	2230 *2720*1350	2230 *2920*1350	2230* 3220*1350	2230*3970*1350	2230*4640*1350
Weight	kg	1000	1125	1250	1600	1800
Work speed	m/s	1.11~2.22
Working efficiency	hm2/h	0.96~1.92	1.08~2.16	1.20~2.40	1.50~3.00	1.68~3.36
Working width	cm	240	270	300	375	420
Row space	cm	15
Rows NO.	row	16	18	20	25	28
Seed-metering device	/	Gear roller, non-metallic material
Seed-metering device NO.	unit	16	18	20	25	28
Fertilizer apparatus	/	Fluted roller fertilizer apparatus
Fertilizer apparatus NO.	unit	8	9	20	25	28
Seeding Opener	/	Double disc
Seed opener No.	unit	16	18	20	25	28
Fertilize opener	/	Double disc
Fertilize opener No.		8	9	20	25	28
Seed/fertilizer box volume	L	269 / 310	290/330	320/375	400/470	470/560
Seed/fertilizer adjustment method	/	Seeding: Gearbox Fertilizer: Sliding Bed
Sowing part transmission mode	/	Chain
Land wheel modal	/	Drum-type
Land wheel diameter	mm	445

Details and pictures
Seeding box
The new seed box can not only observe the seed metering process, but also prevent seed splashing. In addition to sowing wheat and direct seeding upland rice, any small seed can be sown after fine adjustment, and the sowing amount is stable and reliable.
The seed wheel assembly is composed of green, blue and yellow wheels.
1.Factory mode (three rounds work at the same time), can sow wheat, oats, barley and other crops.
2.Blue wheel works alone, can sow millet, sesame, rape, alfalfa, medicine and other small grain crops.
3.Green wheel and blue wheel work at the same time, can sow wheat, mung beans, black beans and other crops.
4.Blue wheel and yellow wheel work at the same time, can sow wheat, rice and other crops.
Fertilizer box
The patented fertilizer discharge box is adopted, which can be adjusted flexibly without blocking the fertilizer. It is made of transparent engineering plastics, which is easy to observe the working state and easy to maintain it.
CVT gearbox
The gearbox can achieve the broadcast from 0(when the pointer points to 0) to the maximum broadcast (the pointer points to 100)
When basically uniform change.
Sowing depth adjustment
There are three corresponding mounting holes on the single suppression limiting wheel and the sowing unit, it makes the the sowing depth of the species deepens when the limiting wheel lifts up.
Clearing mechanism adjustment.
Adjust the wrench position when planting different crops
It's different. It's different in different situations.




Packaging & Shipping
Whole container shipping:
lf you need a bigquantities, we can packed in bulk. We also can packed container directly irour factory.
Wooden box: One set uninstalled package
Always use this as the size and cost are much suitabe.
