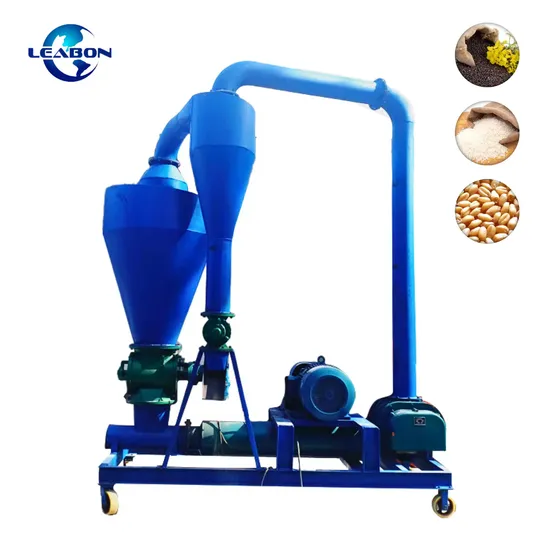

High Capacity Feed Grain Suction Machine Paddy Pneumatic Conveyor Grain Processing Plant Suction Machine

Product Description

High Capacity Feed Grain Suction Machine Paddy Pneumatic Conveyor Grain Processing Plant Suction Machine
Product Introduction
1)Highly intelligent, labor saving, one person can operate.
2)Pulse dust removal; Almost dust-free, higher than environmental requirements.
3)Wireless remote control, operation, self-walking flexible and convenient.
4)Compact structure, reasonable layout, can be adapted to various working environments.
5)Clean thoroughly, no need to clear the warehouse.
6)Suction and unloading of bulk granular materials (e.g. wheat, rice, corn, rapeseed, soybean, cottonseed, feed, granular fertilizer, plastic, cement, etc.). Suitable for farm, station, warehouse, grain processing plant, feed processing plant and other places of loading, unloading, filling, out of the warehouse, flipping, reversing and other mechanized operations.

Product Parameters
Model 1

Model	LB-D50
Capacity	50t/h
Suction arm length	6.5m
Overall dimension	11000mm*2000mm*3500mm
Delivery capacity	50t/h
Energy consumption ratio	760kg/kw/h
Suction main motor power	37kw
Discharge main motor power	55kw
Auxiliary power	15.5kw
Main motor speed	1480r/min
noise	85dB(A)
Exhaust dust	60mg/m3
Wind resistance of the whole machine	1.25kpa
The pneumatic system resists external pressure	70kpa
Grain suction arm horizontal length	6.5m
Grain suction arm vertical length	3m
Air shut-off capacity	50l/r
Air shut-off speed	39r/min

Model 2

Model	LB-125
Three leaf Roots fan	Caliber 200mm((including riser, silencer, base)
Fan power	380V,15KW(Including triangle belt, belt wheel, guard)
Chakron cyclone dust removal	2pcs
Discharge	16L closed air discharger(including deceleration motor)
Conduit	4 inch beef hose 20 m(including matching clamp and connecting short pipe)
Movable base	1pc
Electric cabinet	1pc
Feed nozzles	1pc

Model 3

Model	LB-150
Three leaf Roots fan	Caliber 200mm((including riser, silencer, base)
Fan power	380V,30KW(Including triangle belt, belt wheel, guard)
Chakron cyclone dust removal	2pcs
Discharge	26L closed air discharger(including deceleration motor)
Conduit	5 inch beef hose 20 m(including matching clamp and connecting short pipe)
Movable base	1pc
Electric cabinet	1pc
Feed nozzles	1pc

Raw Material
More Pictures
Packaging & Shipping
Company Profile
Our Service And FAQ
Our service
1.We can provide you the one year warranty but without the spare parts.
2.The professional and timely 24 hours after-sale service.
3.The relative video of the machine installation and instruction will be provided for you.
4.We can provide you the different mould to meet your different requirements.
5.We can also meet the special voltage demand.
6.The engineer is available to service machinery oversea.
FAQ:
Before quote, pls inform us follows information, so then we can suggest a suitable model grain suction machine for you.

Q1:What's your raw material?

Q2: What's the capacity of suction machine you needed?(ton/hour)

Q3:what is the size of the grain suction plot so that we can determine the diameter of the suction port.

Q4: What's the industrial voltage in your country?

Q5:Do you have special requirements for the color of grain suction machine?

Q6:What are your requirements for electrical configuration?
