Trailer-Mounted Concrete Pump Hbt40

Product Description

China Suppliers High Productivity Static Pump Concrete Mixer Diesel Concrete Pump
1.who are we?
Qingzhou Hongyuan Machinery Co.,Ltd is a modern international company engaged in construction machinery.
Hongyuan has developed rapidly by advanced technology and modern management.CE and ISO certificates areavailable.The strict quality control system and high quality production lines have developed the high quality products and fast delivery service. We have built one professional after-sales team that can server the customer well at the first time.
2.What are the advantages of our Concrete pump?
Warranty period: within one year after delivery / 2000 working hours, if there is any quality problem, we will provide you with accessories for free.
Provide customized services, your exclusive shopping agent, personalized purchase, you are born different from others!
3. What do you just need to do?
contact us, tell us your needs, and provide your WhatsApp/email. The exclusive consultant will contact you as soon as possible to provide you with preferential prices for customized products you like, without wasting your time!
Parameters of Construction Machinery Diesel Electric Portable Small Mini Stone Cement Beton Mixer Mortar Piston Mortar Grouting Machine Trailer Concrete Pump

Project	Unit	HY25	HY40	HY60	HY80
Maximum theoretical delivery	m³/h	23	40	60	80
Maximum outlet pressure	Mpa	8	13	13	13-16
Maximum theoretical transport distance	m	100/300	200/800	240/1100	240/1100
Motor Power	kw	30	55	90	90-110
Feeding height	mm	1200	1200	1350	1350
Pumpable concrete maximum particle size	mm	≤50	≤40	≤40	≤40
Most suitable for pumping concrete slump	cm	15-23	15-23	15-23	15-23
Duct inner diameter	mm	Φ125	Φ125	Φ125	Φ125
Host weight	Kg	1900	3400	5000	5600
Dimensions: length × width × height	mm	3300×1600 ×1800	4300×1600 ×1800	5500×1800 ×2000	5800×1800 ×2000

Advantages of Our Product 1.The special pouring pump for secondary structure fine stone mortar can realize the transportation of fine stone concrete and mortar for long-distance high-rise buildings.
2.The distribution valve adopts advanced S-tube valve, which has good sealing performance and simple and reliable structure.
3.The eye plate (commonly known as wear plate) and floating cutting ring are made of hard alloy, which has good wear resistance, long service life and convenient replacement. The cutting ring can automatically compensate the gap structure.

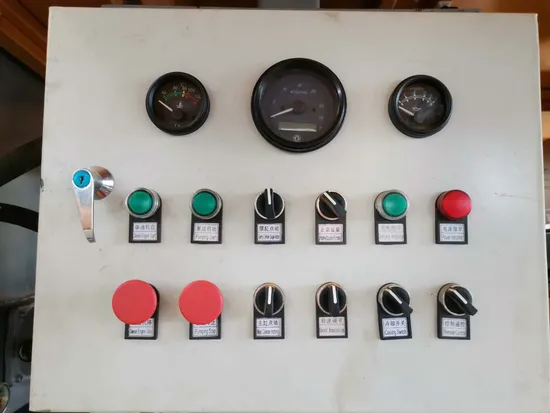

4.The machine adopts electric-liquid control mode, with perfect electro-hydraulic overload protection and instrument display system. It has anti-pump operation function, easy to eliminate blockage fault. The pumping speed can be adjusted to meet various working conditions.
5.The centralized lubrication system automatically controls the start and stop and running time by the program, effectively extending the service life of the rotating parts.
6.The electrical components such as the contactor and the push button switch are reliable in operation, the control circuit is simple, and the electrical box is equipped with a switch for easy operation.
7.The main seals are made of high quality seals to prevent internal and external leakage of the hydraulic system
