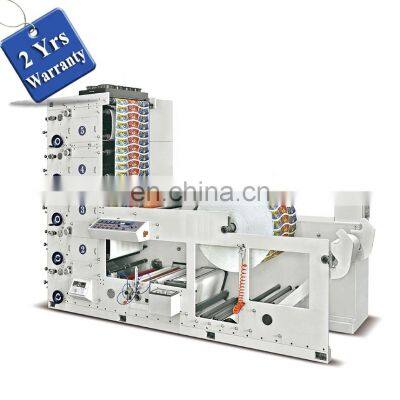

UTR-650 4 6 color fully Automatic PE coated Paper Cup Plate sleeve fan Flexo Printing machine

Product Description

Product Description
UTR-650 4 6 color fully Automatic PE coated Paper Cup Plate sleeve fan Flexo Printing machine
Videos
Video Demonstration Only For Reference
Video 01: /watch?v=ElspwlBP8I8
Video 02: /watch?v=6aZxSouuZzU
Product Description
Features:
1, Adopts the anilox roller to spread ink.
2, Unwinding and rewinding are controlled by magnetic power brake, clutch, (or by automatic tension controller of Mitsubishi).
3, Each printing unit adopts 360 degree for color registration.
4. Each printing unit has one IR drier.
5. The rubber roller can break away automatically while stopping and running at a low speed in order to avoid ink dried.
6. The main motor is equipped with import stepless regulation of frequency conversion.
7. Unwinding, web guiding, corona treatment,printing, IR drying and rewinding can be finished in one process.
8, An ideal machine to print many kinds of paper rolls before cup making steps.
Parameters:

Model	UTR650-4/UTR650-6	UTR850-4/UTR850-6
Printing Speed	60m-80m/min	60m-80m/min
Printing Color	4 Colors/6 Colors	4 Colors/6 Colors
Max. Web Width	660mm	860mm
Max. Printing Width	650mm	850mm
Max. Printing Diameter	1100mm	1100mm
Max. Winding Diameter	1100mm	1100mm
Printing Girth	180-420MM	180-420MM
Registration	±0.15mm	±0.15mm
Dimensions(L*W*H)	3500*1650*2200mm	3500*1850*3300mm
Machine Weight	About 3400kg	About 4000kg

Detailed Images
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min print size in mm?
B: Material thickness and unwinding width
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
