Low Investment Cooling Equipment for Effective Feed Pellet Cooling

Product Description

The horizontal pellet cooler is an essential asset in the pelleting section of small to medium-sized feed mills, specifically designed for efficient pellet feed cooling. It skillfully manages the pelleted feed, which can reach temperatures as high as 80-90°C with a moisture content of 17-18%. This remarkable equipment ensures the cooling process effectively, bringing the temperature down to just above room temperature while expertly reducing the moisture content to a safer 12-13%. This precise adjustment is crucial for maintaining the quality and integrity of the pellet feed.
Livestock Feed Pellets Granular Cooler Machine/Cooling System for Feed Mill Plant-a state-of-the-art solution for feed mill cooling needs.
The Feed Pellet Cooler is a pivotal component for cooling Animal Feed and Wood Pellets during the pelleting process. This advanced system cools the pellets, initially at 70°C-90°C, to a temperature just 3°C~5°C above the ambient level, ensuring they reach a safe moisture content. By enhancing the firmness of the pellets and preventing spoilage, it optimizes the pellets for both transportation and storage, ensuring their quality and longevity.

Feed Pellet Feature Highlights: 1) The innovative counter flow pellet cooler is designed to efficiently lower the temperature and moisture of the pellets. It ensures that hot air interacts with hot pellets while cool air cools the cooler ones, effectively preventing surface cracking from abrupt cooling.
The carefully designed airlock mechanism assists in the feeding process, and with an expanded air inlet, it achieves superior cooling effects by preventing direct contact between the cool air and hot pellets.
2) The slide reciprocating discharger offers seamless and dependable discharging with minimal residue, enhancing the efficiency of operations.
3) With low power consumption and user-friendly operation, this cooler is an excellent choice for efficient pellet cooling.
4) After cooling, the pellet temperature is expertly maintained at just 3-5ºC above the ambient temperature.
Product Parameters

Model	Power	Capacity	Dimension	Weight
HCL-50	0.75+2.2kw	500kg/h	800*750*1100mm	280kg
HCL-80	0.75+4.4kw	1000kg/h	800*750*1100mm	450kg
Cooling Time(min)	Not less than 10-15
Material Temperature after Cooling	Not higher than room temperature +3°C to -5°C

Product Features

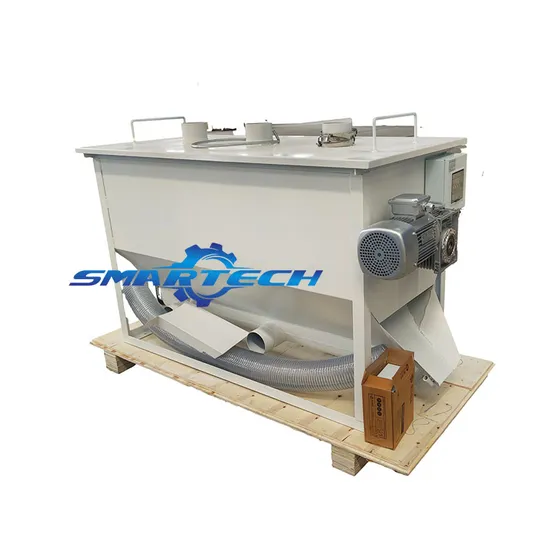

Horizontal Cooler

This innovative pellet cooler is meticulously crafted, inspired by the versatile drum of a rotary sieve. It ingeniously combines the functionality of a drum sieve with the sturdy support of a robust frame, ensuring reliability and performance.
Ingeniously designed, the rotary drum sieve is strategically angled at a precise degree from the ground, optimizing its performance and efficiency.
Encased in a sleek and closed steel exterior, the sieve is expertly engineered to significantly diminish noise pollution, fostering a quieter operational environment.
Equipped with an adjustable speed system, the drum sieve operates at a precise rotation speed. This allows pellets to be expertly separated and thoroughly cooled as they traverse from top to bottom within the rotating drum sieve. Ingenious in its operation, the drum sieve efficiently expels fine powder from its front, while ensuring that premium quality pellets are smoothly channeled out from its rear end.

Company Profile
Welcome to Luoyang Smartech Machinery Equipment Co., Ltd, where we redefine excellence in the realm of advanced machinery engineering. As a leading light in both manufacturing and exporting, we specialize in delivering top-tier solutions across biomass energy, feed production, agriculture, and recycling sectors. Our extensive expertise is driven by an unyielding dedication to innovation, empowering us to provide tailored solutions that address the distinctive requirements of our esteemed global clientele.
Our extensive product range includes: Wood Pellet Mills, Pellet Mills, and Feed Pellet Mills, meticulously engineered to enhance productivity and efficiency in both the biomass and feed industries. Additionally, our distinguished lineup features high-performance machines including: Crusher Machines, Grinding Machines, and Wood Chipper Machines, which are ideal for industries that prioritize precision in material processing. Addressing various requirements such as drying, packaging, and storage, our: Dryer Machines, Packaging Machines, and Coolers ensure reliable, consistent performance. Our offerings are further elevated with state-of-the-art technology featuring: Shredder Machines, Recycling Machines, Oil Press Machines, Extruders, Mixers, and Hammer Mills, designed to streamline and optimize comprehensive processes.
At Luoyang Smartech Machinery Equipment Co., Ltd, we are committed to delivering equipment that is not only sturdy and energy-efficient but also tailored precisely to meet the individual specifications of our valued customers. Each product is meticulously crafted to align with international standards, proudly holding esteemed CE and ISO certifications, thereby ensuring unmatched quality and reliability.
For further intricate details and to access factory-direct pricing, we warmly encourage you to reach out to ustoday!
