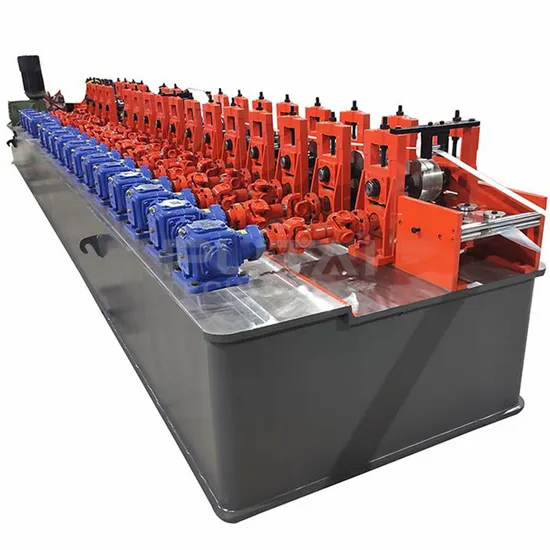

Real Factory Ceiling T Bar Machinery and Cross Tee T Grid Roll Forming Machine

Product Description

Real Factory Ceiling T Bar Machinery and Cross Tee T Grid Roll Forming Machine
Looking for a reliable T-bar T-grid roll forming machine? Look no further than Putai Technology. Our advanced T-bar roll forming machines are designed to deliver precision and efficiency, enabling you to produce high-quality T-bars with ease. With cutting-edge technology and superior craftsmanship, Putai Technology ensures optimal performance and durability. Explore our range of T-bar roll forming machines today and take your manufacturing capabilities to the next level. Trust Putai Technology for all your roll forming needs.
Product Application Scenarios

Roller stations:	12 rows
Roller Material:	Cr12‚ Forging‚ lathe finishing‚ quenching‚ Heat treatment HRC58-6
Transmission Type:	Gear drive
Steel structure:	Integral plate welding steel structure
Thickness of Structure	Raw material is 25mm, after polishing ,may 23-24mm,Q235 Raw material is 30mm, after polishing ,may 28-29mm,Q235
Cutting&Hydraulic type	servo motor punching and cutting
Shaft diameter & material:	Shaft diameter: 50mm/Spacer :70mm Material:45# steel Machine tool processing heat treatment, then grinding
Total Power:	25KW

Uncoiler
A .Functional Configuration
Put the steel coil on it for feeding raw material

Roller
A. Material: Cr12
B. Forging, lathe finishing, quenching HRC58-60,
polishing

Shaft
A.Material: high grade 45# steel material

Main Motor
Powerful and running steady, when speed is high, it
does not shake.

Hydraulic Station
A. Oil cylinder and oil pump adopt national standard rod oil
cylinder, easy to purchase all over the world.
Drive Type: Gear
Electric control section
A.China Brand control Panel and system to
ensure high speed, stability, precision and lifetime.

A.Servo system cutting

Front view and top view of forming machine :
Factory
Packing & Delivery
Cetifications
FAQ:
1)Q: Do you have after sales support? A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running. 2)Q: How do your machines compare with other big companies in this market? A: We are up to date with the latest technology and improve our machines accordingly 3)Q: How does your factory do regarding quality control? A: Quality is priority. we always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment. 4) Q: Do you sell only standard machines? A: No, most of our machines are built according to customers specifications, using top brand name components 5) Q: Can you make the machine according to my design or proto type? A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us
6)Q: How can we be assured that you will deliver us quality machine with spare parts? A: 1. Customers to send the technical people to our factory for checking the quality. 2.We can send the technicians to the buyer`s factory for the installation of the machine. 3.Good aftersales-service, its free of charge during the warranty period. 7)Q:What can you do if the machine broken? A:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freel, but you need pay the express cost yourself. if after warranty period, we can look at negotiation to solve the problems, and we supply the technical support for the whole life of the equipment. 8:How to play order? A: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit ---then OK 9:How to visit our company? A: Fly to Tianjin airport, we will pick up you at the airpport.
