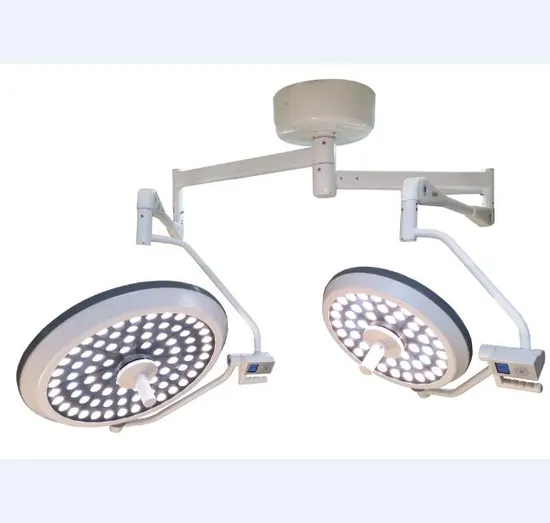

Medical Equipment LED Double Ceiling Operating Shadowless Lamp Surgical Medical Ot Light

Product Description

LED-700/700D LED surgical light
High efficient and durable OSRAM LED light source without thermal radiation
Easy to use color temperature and brightness adjustment, uniform adjustable spot technology
Excellent and efficient optical and unique light source module design, can be equipped with a variety of sizes of controller
It can be configured with external / central control camera system, gesture sensing, handheld wireless remote control, shading compensation and other new functions Three lighting modes
Three Lighting Mode suit for various operation with different lighting requirement
Uniform Adjustable Light Spot
Multi layer spot overlapping technology, central focusing device, clear operation field Excellent light source module design
Lamphead with 80/48pcs LED light source, which are divided into multiple light source groups
Excellent lighting collecting technology (lens focusing agnle is reasonable), Excellent light efficiency
Each group light source is controlled by CPU independently, if any group light source is broken, the light can still use
Internal Light Source Structure: Engineering Plastic ABS + Aluminum Board, good heat dissipation and lighter weight
Color Temperature and Brightness Easy Adjustment
Color rendering index ≥ 90, near to real color as soon as possible
Stepless PWM dimming to satisfy brightness requirement for different surgery
Reasonable quantity and distribution design of high low color temperature light source, which achieve 4000-5000K color temperature adjustment
Easy Practical Operation
Soft Light with Eye Protection
Controllers for your optional
2.4 inches push button controller with easy usage
Mutual Control for Both Lamp Head
Both lamphead controller can control mutually each other`s color temperature, endoscope, camera and others ( knob dimmer have no this function)
Optional HD Camera System
Surgical Light can be equipped with built in camera or external camera system
PWM technology, perfectly solving stroboscopic problem of the camera system
Remote consultation, remote teaching, large-screen conference, etc. can be realized via the Internet and operating process can be recorded at the same time
Optional Gesture Sensing
Sensor to recognize gesture, achieve non-contact brightness adjustment, more convenient and faster
Optional Shadow Compensation
Humanized intelligent shadow compensation technology
When surgeon`s head is near to the light source, other light source will automatically compensated brightness to ensure the ideal light beam on the operating field
Optional Handheld wireless remote controller
Using LoRa modulation technology, encryption wireless transmission, safe and reliable
Transimission distance is not less than 20meters, it can realize remote control with surgical light
Stable Structure, Easy Install and Usage
Adjusted with removable sterilizer handle with bear 134ºC
Balance arm of surgical light with square arm, lamp head can be pulled down vertically, and easy to rotate and adjust
LED-700/700D LED Surgical Light Parameter

Type	LED-700/700D
Supply voltage	AC110-240V 50/60HZ
Spot diameter	120-300mm(adjustable)
ILLumination	40000-160000Lx
Color temperature	4000-5000k(adjustable)
Color rendering index	≥90% (adjustable)
ILLumination depth	≥1000mm
Brightness Adjustment	1% - 100% (stepless dimming)
LED Lifespan	≥50000h
LED Quantity	80
LED lamp brand	OSRAM
Maximum LED Power	Rated 3W, actual use ≤ 1W
