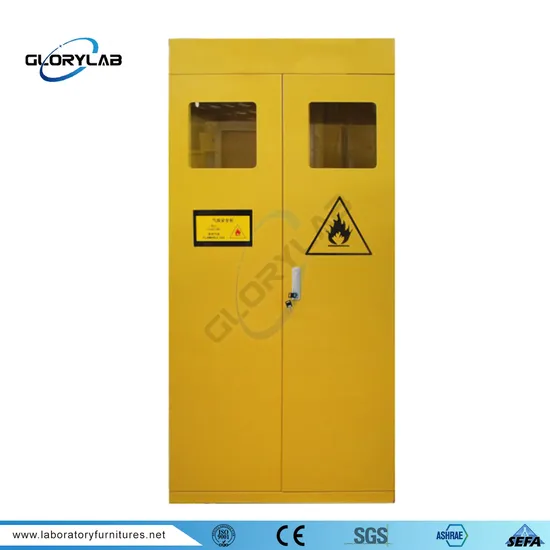

CE Certified Steel Gas Cylinder Cabinet with Epoxy Powder (JH-HC010)

Product Description

10+ years of manufacturing and exporting experience
Type: JH-HC010
Steel Double Gas Cylinder Cabinet with Epoxy Powder

Size	900*450*1800mm.(LxWxH) or customization
Color	yellow, gray, blue or specified by customer
Cabinet /panel material	1.0/1.2mm cold-rolled/galvanized steel sheet coated with epoxy resin powder after acid pickling, phosphating,oil and rust removing.
Door and drawer	double-layers structure with sound absorbing material inside,keeping noise minimum when door is opened or closed.
Hinge	304 S.S hydraulic/exterior hinge.
Handle	U-shape 128/160mm S.S handle.
Shelf	4 pcs, 1 fixed, 3 adjustable.
Installation	offering assembled or dismantled. Easy installation as per our vedio.

Product advantage:
1.Thickened cold-rolled steel plate, acid phosphating treatment The cabinet body is made of
thickened cold-rolled steel plate, after pickling phosphating treatment, the surface is sprayed
by epoxy resin electrostatic spray to achieve the effect of acid, alkali and rust prevention.
2. Optional function: Intelligent exhaust system, combustible gas detector. After detecting a gas
leak, the top fan will work automatically, and the gas exhaust duct will be discharged outdoors.
The professional combustible gas detector will be used for air diffusion sampling. When the
concentration set at the chip cut point is reached,the alarm will be automatically generated.
3.There are two 40mm diameter PASS holes on both sides of the cabinet, which can ensure
the smooth passage of the gas pipeline.
1. Certification:
Authorized SGS certification showing the conformity of US standard SEFA-8M, which test many
items including weight capacity of steel cabinet etc. This certification shows the superior quality
of our steel bench and it can meet the highest standard in this field.
2. Quality improvement
While complying with highest standard of lab bench, we also focus on improvement of steel
cabinet and its accessories. Pls see details as below:
I. Insisiting on using high quality accessories.
II. Adding sound absorbing material inside the door to minimize the noise when door is closed.
III. Open mould to make specialized collision bead to reduce the noise at most.
IV. Applying a variety of welding technology which lead to excellent whole weight capacity,
meticulous welding and exquisite welding spot.
3. Prominent appearance
We pay attetion to every step during production especially on welding, polishing and coating of
epoxy resin powder which decide the final appearance and keep improving continously.
4. Strict quality control:
It's our goal to seek perfect products and service for customer's satisfaction. Pls contact with
us once you have any idea or suggestion on product design, quality improvement or service etc.
Inside of Gas Cylinder Cabinet:
Production Line
To ensure excellent craftmanship / product precision / production capacity, our company is
equipped with a series of automatic imported/CNC facilities including laser / punching /bending
/ caving machine, as well as welding robot and automatic coating line etc. Our company has
become one of the most outstanding enterprises in CHINA who own the most advanced
production equipments and huge production scale in our field.
Packing: Carton for FCL(full container) goods, wooden case for LCL goods. We always recomend the best packing type for customers according to order volume&goods
size&installation status in the principle of cost saving and safety consideration Export standard wooden case Strong carton for full container
Shipping:
By train/air/sea as per goods volume&delivery schedule of customers.
Container type: 20GP, 40GP, 40HQ.
Seaport: Shanghai or any specified port in CHINA.
Q: What certifications do you have? ISO9001, CE, SGS, SEFA, ASHRAE110
Q: How to arrange payment after confirming order?
A: We accept various payments including T/T, LC,Cash etc.

Q: What is the delivery time normally?
A: Within 6-20 working days after receiving deposit.
Q: How to ensure quality of products?
A: Quality is the life of our company. We have working experience more than 10 years in
this field. Meanwhile, all goods are double checked as per strict QC control procedures.
Customers are welcome to check quality before shipping.
Q: How to secure sample from your company? We offer free sample if it's small and postage needs to be charged.
