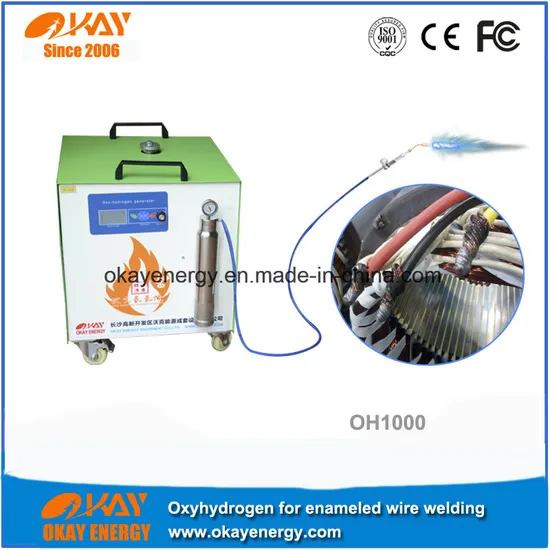

China Factory Price Best Selling Oxy-Hydrogen Welding Cutting Machine

Product Description

hho welding torch water electrolysis HHO brazing welding machine
Oxyhydrogen generator data sheet

Model Number	OH100	OH200	OH300	OH400	OH600	OH1000
AC Voltage Requirement (V)	220/110	220/110	220/110	220/110	220/110	220/110
Phase	single	single	single	single	single	single
Rated Power(KW/h)	0.4	0.8	1	1.4	2	2.5
Max Gas Output	100L/h	200L/h	300L/h	400L/h	600L/h	1000L/h
Max. Working Pressure (kg/cm 2 )	2	2	2	2	2	2
Max. Water Consumption (L/h)	0.06	0.1	0.16	0.21	0.33	0.53
Water Feed	manual	manual	manual	manual	manual	auto
Max. Flame Modifier Consumption (L/h)	0.05	0.1	0.15	0.17	0.15	0.2
Flame Modifier Feed	manual	manual	manual	manual	manual	manual
Dimensions - L*W*H (mm)	390*250*510	450*250*510	590*250*510	710*250*510	930*250*510	540*500*670
Gross Weight (kg)	15	20	25	35	45	80
Ventilation Space Requirement (mm)	200 in each direction	200 in each direction	200 in each direction	200 in each direction	200 in each direction	200 in each direction

Why we used oxy-hydrogen generator?
1) Maxumum safety
2) Environmentally Friendly without any pollution.
3) The cost of electricity and water reduces more than 40% compared with acetylene flame.
4) Low Heat Dispersal
5) Excellent welding and cutting quality.
6) Portable, flexible and movable.
Applications for Welding Industries
Oxyhydrogen flame ideal for:
1)OEM, transformers and power generators;
2)electric motor and power generator repair shop;
3)electric motor work shops;
4)large air conditioning supplies;
5)solar collectors;
6)manufacturing of large statues;
7)manufacturing of trophies, chandeliers, statues and other brass articles etc;
8)gold silver platium jewelry welding and repair;
9)musical instrument welding & repair;
10)others copper welding & soldering
Other Applications:
1)Welding: Copper, , Gold, Silver, Iron, and Tin
2)Heating: Glass and any metal
3)Flame polishing: Acrylic, Plexiglass
Advantages and Features
1. Safety Oxy-hydrogen just uses water and electricity, no gas bottle, no hydrogen gas storage, no leakage and explosive danger.
2. Convenience it can work just with water and electricity, every litre water can be used 7~8 hours. But Liquid gas bottle need to be changed by manual moving, it is very inconvenient.
3. Cleanliness Oxy-hydrogen combustion just produces little water vapour, there is no harm to the pharmaceuticals. But Liquid gas combustion produces carbon dioxide, carbon monoxide and nitrogen compounds which will impact on the quality of pharmaceuticals.
4. High Efficiency The speed of Oxy-hydrogen Flame welding method is higher than Liquid gas's.
Machine accessories for free:
Torch and nozzle: 1 set
Soft pipe: 2m
Flame arrester: 1 unit
Video demonstrations
1)welding demo: for jewelry welding,electric motor welding and brazing,copper welding http://okayenergy.en.made-in-china.com
2)How to install our OH machines?
click or copy the link for video play: http://okayenergy.en.made-in-china.com
Okay Service
1.24hour online chat,email or phone support for inquiry,technical and after-sales service;
2.Warranty:1year.(The core part of machine for 1year.The other parts of machine for half of year in addition to human damage;
3.online trade assurance service(Protection buyer's payment regarding on-time delivery and product quality.)
Company Introduction
Okay Energy Equipment Co.,Ltd is one of the largest manufacturers in producing oxyhydrogen generator for over 10 years, we have autorized CE,ISO9001,TUV,FCC certificates and our own patents.We provide the best service and high quality products to our customers. If you haveany questions, pls don't be hesitate to contact us.
Okay Energy Equipment Co.Ltd
Adress:No.27,Wenxuan Road,Yuelu District,Changsha City,China
Tel: 0086-731-83979221
Web: okayenergy.en.made-in-china.com
