3 Axes 2D CNC Wire Bending Machine for Wire Forming

Product Description

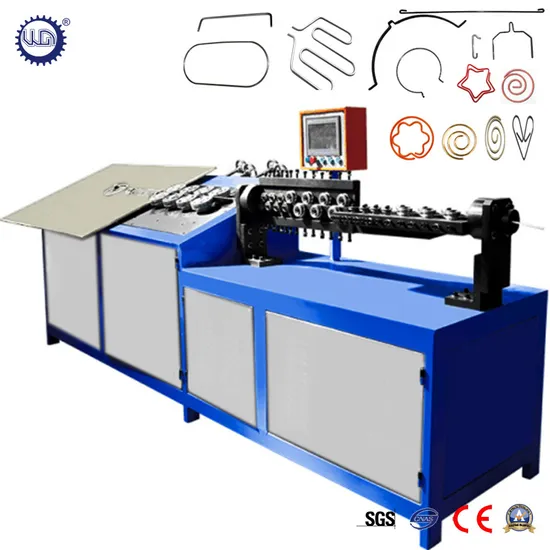

Product Description 3 Axes 2D CNC Wire Bending Machine for Wire Forming
CNC 2D wire bending machine is to produce kinds of wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.
Advantages & Main Features 1)3-4 pairs feeding roller,feeding motor fixed on the bottom base, so as to decrease the feeding box weight,that wire rotation is more fast and stable.
2)Twist head is designed in copper tube transport, more stable and stronger than bearing transfer
3) Adopting advanced world famous brand components in CNC parts ,electric parts and operation parts.
4) Running in a high automatization and intellectualization,no pollution

Model	GT-WB-60-5A	GT-WB-60-10A	GT-WB-80-9A	GT-WB-100-9A	GT-WB-120-7A
Wire Size(mm):	2.0-6.0	2.0-6.0	3.0-8.0	5.0-10.0	5.0-12.0
Axis:	5	10	9	9	7
Feeding Roller Number:	3 pairs	3 pairs	3 pairs	4 pairs	4 pairs
Wire Turning Angle:	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited
Platform lifting height:	50-170mm	50-170mm	25-120mm	25-120mm	25-120mm
Twisting head lifting height:	20-100mm	20-100mm	20-80mm	20-80mm	20-80mm
Distance between cutting and bending head	/	/	/	305mm	305mm
Distance between bending head and machine body	/	/	/	800mm	800mm
Out twisting lifting height	/	20-55mm	/	/	/
Left to right moving range	/	left:80mm right:40mm	left:100mm right:60mm	/	/
Feeding front and back moving range	/	front:300mm back:100mm	front:300mm back:100mm	/	/
Machine size(cm)	180*120*120	300*120*140	350*120*150	380*140*170	450*180*170
Machie weight(kg)	3000.0	3200.0	3400.0	4800.0	8600.0

Detailed Images Service Pre-Sales Service * Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service * Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
