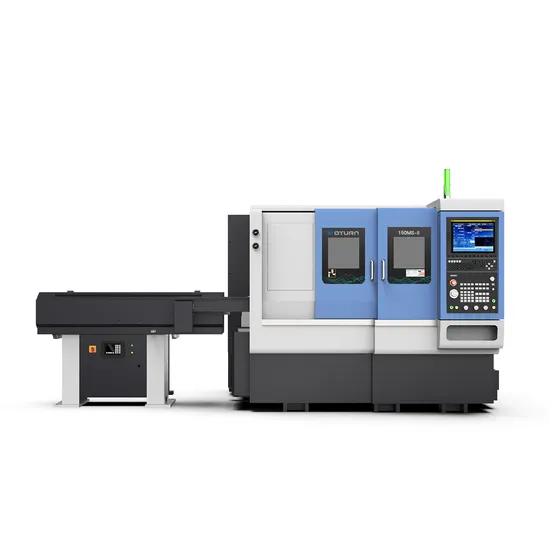

Oturncnc Automatic Twin/Double Spindle Turning Center CNC Lathe

Product Description

Product Description
Crafted with high-strength HT300 one-piecestructurecastingironbed, the 30-degree steptypeflat rail structure employs finite element analysis for superior mechanical rigidity and stability. This design ensures long-term precision, stable processing, and extended tool life, with stress-relief treatment enhancing accuracy and stability.Improved accuracy and stability through a high-strength roller rail design. The drive system uses a screw pre-tension design to enhance response rigidity.
Our lathe allows both ends of the workpiece to be processed simultaneously in one clamping, simplifying manual operations, boosting output, and reducing processes. The second spindle enables full turning and uninterrupted machining, significantly cutting cycle times.
1.Direct drive synchronous electric spindle: magnetic ringtypeincremental encoder (Sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds.
Effectively eliminates spindlevibration, with nose end deflection accuracy within 0.002mm. Enhances workpiece surface finish.
A rear-mounted rotor facilitates installation and maintenance.
The spindle motor features a cooling system to mitigate thermal displacement, ensuring consistent spindle temperature. Rigorously dynamic balanced, the spindle system offers excellent precision retention, high rigidity, and efficiency, suitable for both finishing and heavy cutting, particularly for mass production of complex, high-finish products.products.
2. High rigidity integral servo power turret: offers rapid, precise tool changes. The tool holder uses a high-rigidity BMT interface, driven by a servo spindle motor for power transmission.
3. Equipped with THK linear guide rails and ball screws. The heat-treated and precision-ground ball screws ensure optimal precision and durability. Direct transfer shaft structure and double-anchor pre-relay minimize thermal displacement, enhancing machining accuracy. The high-rigidity, large-size, heavy-duty linear slide rails maintain machine accuracy under impact, allowing smooth, low-noise displacement, thus extending the service life.
4. Standard configuration with FANUC system, featuring a FANUC servo motor for feed drive.
5. A robust hydraulic and lubrication system with high-quality hydraulic pumps, valves, and components reduces the failure rate. Its simple and reliable design ensures efficiency.
6. Incorporates a Taiwan rotary chuck, oil cylinder, and automatic chip removal device to significantly reduce operator labor intensity, ensuring safe and efficient production. These functional components are programmable for precise control. Special fixture included.
Product Parameters

Name	Unit	SY150MS-II
The largest diameter rotating bed	mm	Ф380
Max. processing diameter	mm	Ф100
Max.Swing Over Cross Slide	mm	Ф160
Max. processing length	mm	150
Spindle nose	/	A2-5
Max. speed of spindle	rpm	6000
Hydraulic Cylinder/Chuck	/	6"
Spindle hole diameter	mm	Ф56
Bar diameter	mm	Ф45
Spindle motor power	kw	11
Spindle motor torque	Nm	61-125
Spindle nose	/	A2-4
Max. speed of spindle	rpm	6000
Hydraulic Cylinder/Chuck	/	5"
Spindle hole diameter	mm	Ф46
Bar diameter	mm	Ф32
Spindle motor power	kw	11
Spindle motor power	Nm	34-67
X1/Z1 motor power	kw	1.8/1.8
X2/Z2 motor power	kw	1.3/1.3
X1/Z1 travel	mm	135/370
X2/Z2 travel	mm	215/400
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
X/Z/S axis moving fast	mm/min	30/30/30
Slide rail type	mm	Roller 35/35
Slide rail type	mm	Roller 30/30
Turret type	pcs	BMT45-12T
Power motor	Kw	4.0kw
Max. speed of	rpm	5000 ER20
The tool block specifications	mm	20x20
Circular cutter holder specification	mm	Ф32
The adjacent tool change time	sec	0.15
Turret type	pcs	NC8T
Tool block specifications	mm	25x25
Circular cutter holder specification	mm	Ф32
The adjacent tool change time	sec	0.15
Machine size	m	2.2x2.1x1.7
Machine Weight	kg	3500
Cutting fluid tank volume	L	150
Volume of hydraulic unit box	L	40
Hydraulic oil pump motor power	kw	1.5
Volume of lubricating oil tank	L	2
Auto lube pump motor power	W	50
Cooling water pump power	W	750
