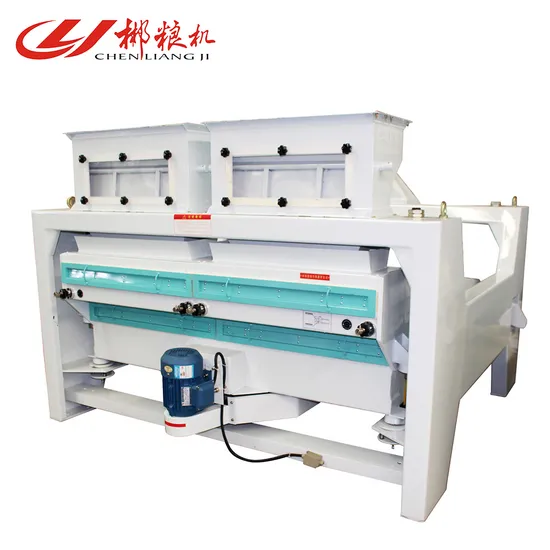

Clj Brand New Rice Processing Machine Tqlm Rotary Paddy Rice Cleaning Machine Rice Cleaner

Product Description

TQLM type series rotary cleaning sieve is used for the big, small and light impurity cleaning in the grain. TQLM type series rotary cleaning sieve is according the required of the grain separate, can adjust the rotary speed and the weight of the balance weight, make the body have the three type running track: foreside (feeding side) is ellipse, middle part is circularity, after body is to and fro beeline moving. The practice prove that: the screen ruing track and the characteristic of the impurity in the materiel combined with the vibration sieve and rotary sieve running type, so it can become the best cooperate. So it can reduce the power, and got the high separate quality. This machine is stable running and lower noise. The air suction combine with the sieve, the obdurate also good, it is better for the circumstance sanitation, it is the most popular machine for the grain cleaning.

Characteristic:
1. Three different motion tracks on the same sieve plate. The sieve feed end swing from left to the right side approximately.
2. The sieve centre body do as flat circular motion which is good for materials overflowing and automatic classification.
3. Airtight sieve body equipped with suction device, less dust.
4. Using four hanging screen, smooth operation and durable.

Model Data Parameter	TQLM-80*2	TQLM-100*2	TQLM-125*2	TQLM160*2	TQLM200
capacity(per-cleaning/cleaning t/h)	13/5	16/6.4	20/8	26/10	8~15
Screen wild (mm)	800	1000	1250	800×2	1000×2
Screen length (mm)	1500	1500	1500	1500	1500
Screen rake(°)	8
Foreside body track(mm)	see form 1
afterbody track(mm)	See form 1
Rotary speed of body(R/Min)	300,400,500(third class can adjust)
Suction volume(m3/min)	35+16	45+20	55+25	70+32	90+40
Power (Kw)	0.75	0.75	0.75	1.1	1.1
weight(Kg)	600	700	800	900	1100
Dimension(L×W×H) mm	2150×1200×1460	2150×1400×1460	2150×1650×1460	2150×2200×1460	2150×2600×1470
