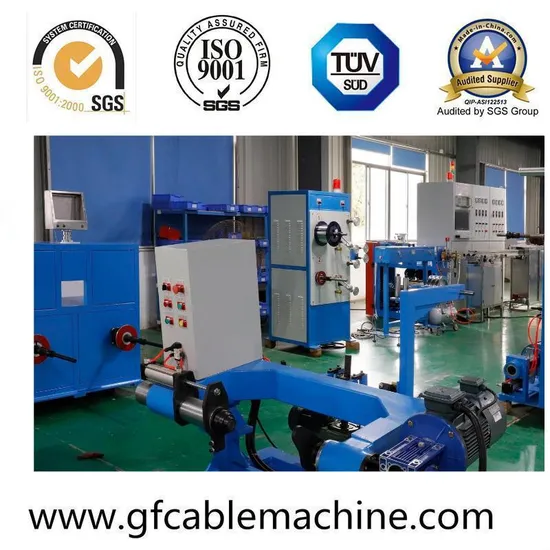

Plastic Optical Cable Production Line for Tight Buffer
| US$30,000.00-99,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
WRK-JT-30
Type
Cable Extruder
Plastic Processed
PVC
Product Type
Granulating Extruder
Feeding Mode
One Feed
Assembly Structure
Separate Type Extruder
Screw
Single-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Certification
ISO
Condition
New
Usage
Tight Buffered Fiber Extrusion
Cable Diameter
0.6/0.9mm
Extrusion Material
PVC/LSZH
Machine Size
GF-30
Payment Term
T/T, L/C
Structure Speed
Max.250m/Min
Service
Technical Support, Training
Motor
Siemens
System
PLC+Ipc Control
Power
Three Phase Five Line 380V 50Hz
Transport Package
Plastic Film+Wooden Package
Trademark
wirecan
Origin
China
HS Code
8477900000
Production Capacity
4set Per Month
Packaging & Delivery
Package Size
320.00cm * 160.00cm * 200.00cm
Package Gross Weight
500.000kg
Product Description
30 Tight Buffered Fiber Production Line-Optical Cable Machine1,Equipment application:
Suitable for 0.6mm/0.9mm tight buffered fiber,the production material PVC,LSZH,HYTREL
2,Technical parameters:
| Machine type | 30/25D |
| Specification optical fiber pay off reels | Φ236 *Φ160*108*Φ25.4mm(25km) Φ236*Φ160*225*Φ25.4mm(50km) |
| Fiber diameter | Φ0.25mm-0.28mm |
| Pay off tension | 0.4N~1.5N±0.05N |
| Tight fiber diameter | Ф0.6mm/Ф0.9mm |
| Design speed | 300m/min |
| Actual speed | ≤250m/min |
| Line length | about 22m |
| Take up tension | 0.5N~3N(adjustable) |
| Take up spool | PN235-400 |
| Center height of machine | 1000mm from background |
| Power supply | 380V±10% 50Hz three phase five line Total about 25KW |
Machine configuration
| No | Name | Qty |
| 1 | Pay off rack | 1set |
| 2 | Fiber preheating device | 1set |
| 3 | 30mm Main extruder + dryer + hopper | 1set |
| 4 | PLC+IPC control penal | 1set |
| 5 | Moving warm water trough and water tank | 1set |
| 6 | Cooling water trough and water tank | 1set |
| 7 | Laser diameter gauge | 1set |
| 8 | Single wheel capstan | 1set |
| 9 | Double shaft take up machine | 1set |
3,Related optical cable equipments:
