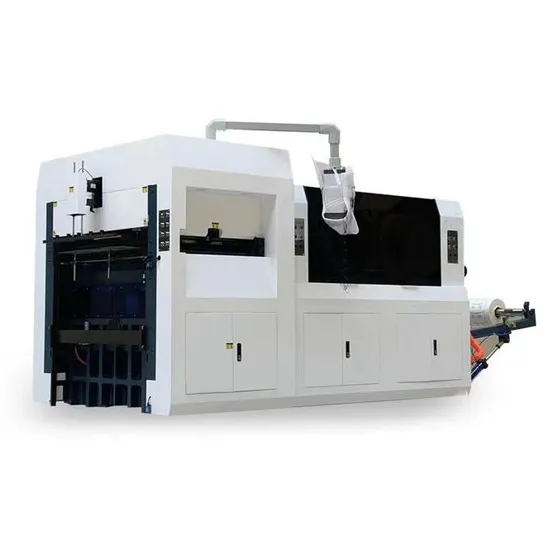

Hydraulic Automatic Roll to Paper Cup Fan Die Cutting Press Machine
| US$25,000.00-32,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
ZM-GW970
Species
Die Cutting and Creasing Machine
Imprinting Type
Platen
Placing Form of Template
Horizontal
Die Cutting Tool
Steel Blade
Computerized
Computerized
Automatic Grade
Automatic
Application
Paper Packaging Materials, Stickers Products
Cutting Precision
0.1mm(White Paper)
Rated Cutting Speed
180-200times/Min
Max Cutting Speed
200times/Min
Max Cutting Pressure
320t
Max Cutting Paper Size(W*L)
940*550mm
Min Cutting Paper Size(W*L)
400*350mm
Suitable Paper Weight
100g-500g
Total Rate of Machine
16kw
Main Motor Power
7.5kw
Overall Dimensions
4.6*2.8*2.3m(L*W*H)
Transport Package
Wooden Case
Specification
940*550mm
Trademark
ZOMAGTC
Origin
China
Production Capacity
180-200times/Min
Product Description
Specification| Model | ZM-GW970 | |
| Cutting Precision | 0.1mm(white paper) | |
| Rated Cutting Speed | 180-200times/min | |
| Max Cutting Speed | 200times/min | |
| Max Cutting Pressure | 320T | |
| Max Cutting Paper size(W*L) | 940*550mm | |
| Min Cutting Paper size(W*L) | 400*350mm | |
| Suitable Paper Weight | 100g-500g | |
| Total Rate of Machine | 16Kw | |
| Main Motor Power | 7.5Kw | |
| Overall Dimensions | 4.6*2.8*2.3m(L*W*H) | |
Main Feature
1) German technology, machine core worm gear, worm structure, synchronization to send oil to machine parts could prolong the service life of equipment.
2) The professional typesetting technology sector paper to save up to 18%, save manpower cost, manufacturing cost, improve production efficiency.
3) Control the feeding, the realization of color code tracking, precision die-cutting.
4) According to the paper layout, use different shape knife version, pneumatic locking knife version, easy to change.
5) Paper random double row roller synchronous movement, help feed wind at the same time, improve the paper function.
6) Drum pressure half die cutting, creasing, tile tree fern, multi-usage.
7)Suitable for all kinds of white cards, kraft paper, creasing paper, corrugated paper, PVC, aluminum foil paper, paper cup fans, etc.
Structure Device List
| No. | COMMODIT | DESCRIPTION |
| 1 | Handpiece5 Components, Casting Parts | Crossbeam,Lifting Table, The movement Base, Left and Right Wallboard |
| 2 | Inter-Machine Transmission Device | Worm Gear, Worm |
| 3 | Chopping Board | NO.65 Manganese Steel |
| 4 | Automatic Form Receiving Tray | |
| 5 | Fixing Core Loading Paper | |
| No. | MOTOR MODEL | MANUFACTURERS |
| 1 | Main Motor Y132M-4 | Lichao Shanghai |
| 2 | Servo Motor 4.5ACA61(with reduction gearbox) | Delta |
| 3 | Smart Sensor(Color Marks Sensor) | Sick Germany |
| 4 | Touch Screen DOP-BO7S200 | Weinview |
| 5 | PLC:DVP | Delta |
| 6 | Traction MotorZF32-2.253 | Zhibao Taiwan |
| 7 | Frequency Converter 7SKWVFD-B/2.2WVFD-M | Delta |
| 8 | Reduction Gearbox | Germany |
| 9 | Switch | Schneider,Delixi |
