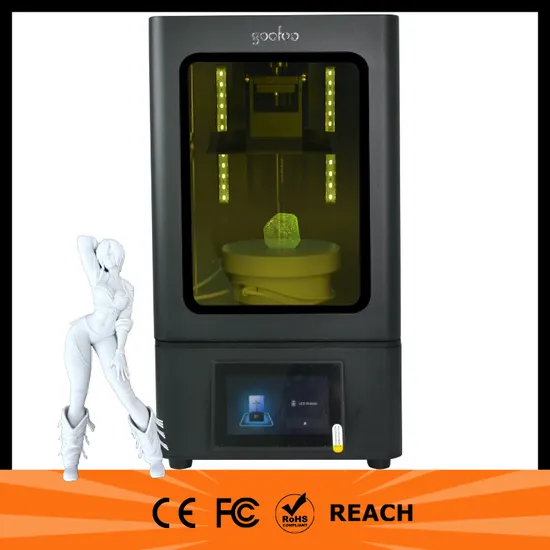

Hot Sale Small Size 3D Wax Printer for Gold Silver Jewelry 3D Wax Printer Machine for Jewelry Resin Dental Rapid Prototyping

Product Description

Hot Products



Product Parameters

ITEM		Lens-s pro
Color		Black
Forming Size		153.36*77.76*185mm
XY Printing Accuracy		0.018mm
Printing Speed		0.8~1.2s per layer
Layer Thickness		25/50 microns
Resolution Unit		7680*4320 pixel
LCD Screen		9K Monochrome
Light Source		60W 405 nm UV lamp
Printing Material		Photopolymer Resin
Connectivity		USB/SD Card

Place of Origin Fujian, China Application Industrial Features SLA 3d printer Warranty 1 Year Molding Technology LCD Applicable Industries Building Material Shops, Manufacturing Plant, Home Use, Printing Shops, Construction works , Energy & Mining, Advertising Company, Dental, jewelry Weight 23.5KG Key Selling Points High-accuracy Brand Name Goofoo Body Size(Length x Width x Height) 268*292*486mm Voltage 100-240V Usage 3D Printing Automatic Grade Automatic Color & Page single color Condition New Machinery Test Report Provided Video outgoing-inspection Provided Warranty of core components 1 Year Core Components Motherboard,Ball Screw Brand Name Goofoo 3D Printer Print Technology UV-LCD Print speed 20-70mm/h Layer Thickness 0.018mm Support material Phtotopolymer Resin Light source 60W 405 nm UV lamp Build Platform Aluminum Print Chamber Full Closed LCD Dimension 9K Touch Screen 7" full color touch screen
more peripheral device support :
1. U disk (USB)storage :You can check the insertion and operation of the USB flash disk, and dynamically adjust the status bar and related information according to the current status of the disk(USB)
2. Native storage:It can support 4G and above on-board storage
3. Cloud disk storage:In the case of networking, you can remotely access the files on the computer/server side on the mainboard and download the files to the mainboard
4. Camera support: Can support cameras up to 720P
5. USB-WIFI module support: To support a variety of WiFi modules and specific WiFi modules according to customer needs
6. USB Hub module support: Multiple USB devices can be connected
More refined control settings:
1. Motion control: Control of four movements of Z-axis, including up movement, down movement, reset/zeroing and braking, including movement speed, acceleration, direction, etc. 2. Immediate arrival on click (roughly adjustment) : Directly operate the Z-axis platform to move to the specified height through the slider bar
3. Step control (fine adjustment): Each time the user clicks. The triggered travel distance of Z-axis can support any travel distance between (0.01, machine height)
4. Kickout setting:The limit settings at different positions can be realized according to the customer model structure. Currently, three modes are supported: upper limit, lower limit and double limit
5. Zero setting:Customize the logical zero point of Z-axis (or Z-axis zero point offset)
It is mainly used to solve the problem of Z-axis leveling clearance caused by the limit offset caused by the model structure or the use process
6. One touch top:One button operation platform moves to the highest point of the machine
More intelligent print management
1. 5-inch high-definition touch screen, 20 ° tilt design, better interactive experience
2. Quiet motor drive for silent printing
3. Parallel array light source+optical path correction lens, more uniform UV light
4. Dual industrial linear guide rail+ball screw, ensuring the stability and reliability of Z-axis
5. 9K black and white screen, resolution: 4098 * 2560, pixel accuracy: 0.035mm, achieving ultra-high detail accuracy and longer service life
6. Double tempered glass on and off the exposure screen, no dead angle to protect the safety of the exposure screen
7. Stop when opening the cover to ensure the safety of users
8. The resin tank is added with a positioning foot to ensure that when the resin tank is taken off and placed on the table, the release film is in a suspended rotating state to better protect the release film from scratches
9. With the new generation of NFEP release membrane, the success rate of release is doubled

Company Profile
Goofoo is a high-tech enterprise that is an unlimited field of 3D printers, materials, 3D printing and aiming to grow to be one of the 3D printing solution providers in the world. With the modular design idea and sustainable innovation, goofoo has released more than 15 series of 3d printers in the market since 2014, fulfilling different customers' needs, like the kids for fun, hobby maker, education, home, office, and industrial application and so on.

Goofoo has been trying its best and releasing 3d printers exceeding customers' expectations. We have integrated a self-build, vertical supply chain covering key components, final assembly & packing. We pride ourselves on the quality of the printers we produce and feel confident that they will supply a unique and fantastic experience that is special and different from others in the market.
Exhibition
Certifications

FAQ
1. Is Goofoo a factory or a trading company?
Goofoo is a manufactory with its over 2000 M² factory and a 10-engineers R & D team, and a professional after-service team.
2. How can I buy your 3D Printer?
We have a USA Amazon store, Spain Amazon stone, and Germany Amazon store, you can order from our Amazon store directly. And you can also contact us, we ship the printers to you from our factory.
3. What is the lead time?
For the sample order (1-5 sets): the lead time is about 3-7 days after payment.
For the bulk order: the lead time is to be negotiated, usually, the lead time is about 30-35 days.
4. How about the after-service?Our printers have a 1-year warranty. And if you have any printing problems, our after-service team will respond quickly to solve your problem by video or online service.5. Do you have any certifications on your printers?The CE, FCC, ROHS, etc. are provided. We have 4-years of OEM experience for Germany/France/Poland compies. And got Brazil's government education project cooperation order.
