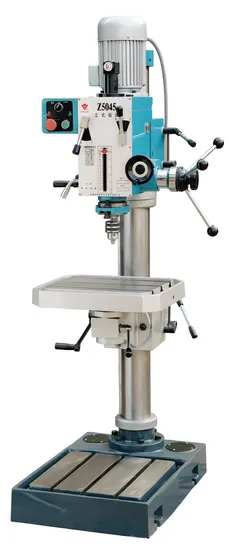

Popular Upright Drilling Machine (Z5032 Z4040 Z5045)
| US$1,030.00-1,230.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5032 Z4040 Z5045
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Polywood
Trademark
WHITE EAGLE OR CUSTOMER LOGO
Origin
China
HS Code
845929000
Production Capacity
500/Month
Product Description
Drilling, milling and tappingHead swivels 360 degree horizontally
Headstock and Worktable up & down perpendicularly
Super high column
Precision micro feed
Positive spindel lock
Distinct auto device for releasing tools, operate easily
Geared drive, lower noise
| Upright Drilling Machine | Z5032 | Z5040 | Z5045 |
| Max. drilling capacity | 32mm | 40mm | 45mm |
| Spindle taper | M. T. 3 or R8 | M. T. 4 | M. T. 4 |
| Spindle travel | 130mm | 130mm | 130mm |
| Step of spindle speed | 6 | 6 | 6 |
| Range of spindle speed 50Hz | 80-1250 r. p. m | 80-1250 r. p. m | 80-1250 r. p. m |
| 60Hz | 95-1500 r. p. m | 95-1500 r. p. m | 95-1500 r. p. m |
| Min. distance from spindle axis to column | 283mm | 283mm | 283mm |
| Max. distance from spindle nose to worktable | 725mm | 725mm | 725mm |
| Max. distance from spindle nose to stand table | 1125mm | 1125mm | 1125mm |
| Max. travel of headstock | 250mm | 250mm | 250mm |
| Swivel angle of headstock(horizontal/perpendicular) | 360° /± 90° | 360° /± 90° | 360° /± 90° |
| Max. travel of worktable bracket | 600mm | 600mm | 600mm |
| Worktable size of avaliablity | 380× 300mm | 380× 300mm | 380× 300mm |
| Swivel angle of table horizontally | 360° | 360° | 360° |
| Table leaned | ± 45° | ± 45° | ± 45° |
| Size of stand worktable of avaliability | 417× 416mm | 417× 416mm | 417× 416mm |
| Motor Power | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| speed of motor | 1400 r. p. m | 1400 r. p. m | 1400 r. p. m |
| Net weight/Gross weight | 430kg/480kg | 432kg/482kg | 435kg/485kg |
| Packing size | 1850× 750× 1000mm | 1850× 750× 1000mm | 1850× 750× 1000mm |
| Loading amount | 18pcs/20" container | 18pcs/20" container | 18pcs/20" container |
