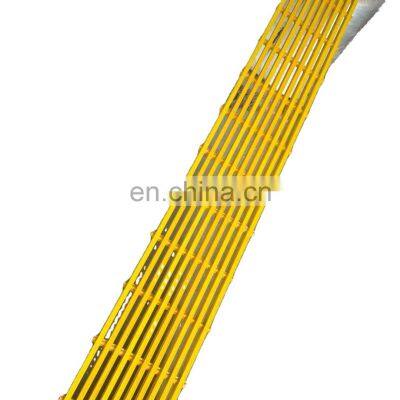

High Strength Outdoor Composite Pultrusion Grating Fiberglass Floor Grating FRP Pultruded Grating

Product Description

Product Description
Product DescriptionHigh Strength Outdoor Composite Pultrusion Grating Fiberglass Floor Grating FRP Pultruded GratingThe FRP Gratings offered by us are manufactured by assembly of pultruded I-Beam & pultruded cross roads. In the FRP Gratings, the distance between I-Beam & cross rods depend upon various load conditions. These FRP Gratings offered by us are acknowledged for offering advanced solutions against critical problem of corrosion in industrial environment.Features: * Corrosion resistance * Maintenance free * Light weighted * Anti skid * Non magnetic * Chemical resistant * No thermal conductivity * Dimensional stability * DurableApplication : * Chemical Plants * Refineries * Power Plants * Marine * Off shore installations * Effluent Treatment PlantsPultruded FRP Grates offer higher strength characteristics and are ideally suited for heavier loads across longer spans than molded grating. The composite matrix of pultruded grating utilizes a higher fiberglass content to resin ratio resulting in a stiffer grate but with less corrosion resistance. Pultruded grating is a unidirectional structure and being an assembled product, allows for larger panel sizes for better utilization.Load Bars: Pultruded grates are constructed of a series of independent load bars with either an "I" or "T" profile. "I" bars are typically used for industrial applications having a higher load capability"T" bars are typically used for pedestrian applications having a wider walking surface.Open area between the load bars can be as high as 60% or as small as 12% depending on your application and loading.SpecificationType Height(mm)Top edge width (mm)Space between (mm)Clearance width(mm)Open area(%)Estimated weight kg/m2I-4010251525104017.8I-5010251530155015.1I-6010A251538236012.2I-6010B25819.811.86013.7I-4015381525104022I-5015381530155019.1I-6015381538236016.2I-4012301525104019.1I-5012301530155016.1I-6012301538236013.1I-40125321525104028.5I-50125321530155024.2I-60125321538236020.1I-4020501525104028.5I-5020501530155024.2I-6020501538236020.1Details ImagesFiberglass grating manufacturer FRP/GRP composite pultruded and molded gratings show After-sales service1.Provide install video if necessary and other install documents2.Quality guarantee is 1 year. 3.If it was proved due to the quality problem,we will bear all cost for replace during quality guarantee time.Packing&ShippingRelated Products1, high quanlity and best price Our company is Professional manufacturer , cheap price and guaranteed quality. we can do the test as your required , such as SGS, ISO and so on. 2, Accept customized, Our company accept customized, if our catalog don't the size you need, is doesn't matter, we can according your required to produce it. 3, Best serviceAnswering emails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business. I think you will satisfy with our service. Give us your PO, let us cooperation for a long time.
