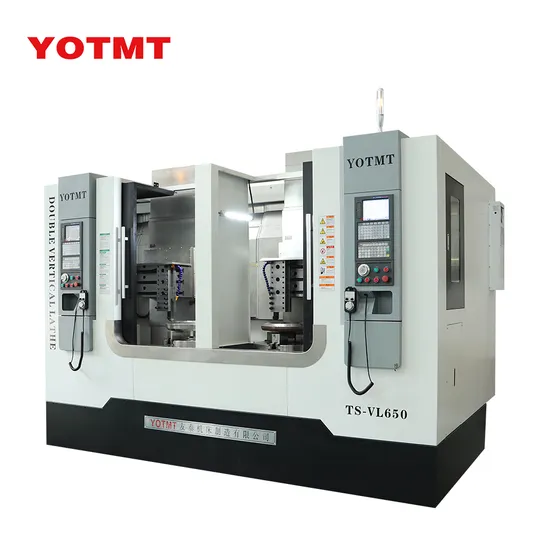

Double Side Spindle Turning Twins Vertical CNC Lathe Machine

Product Description

high-end supplier from China
Double Side Spindle Turning Twins Vertical CNC Lathe Machine
Product Description

parallel vertical CNC lathe with twin-spindle dual-system advantages and features:
- It can perform various automatic systems, such as front-back synchronous machining, left-right synchronous machining, and multi-process automatic machining, achieving great integration of processes.
- It can perform turning and milling hybrid operations, achieving composite machining functions.
- It adopts a high-rigidity structure design, reduces cutting resonance, improves cutting reliability, roundness and surface roughness.
- It adopts a high-speed and high-precision turret tool change system, shortens tool change time, and improves machining efficiency.
- It adopts a parallel vertical twin-spindle structure, which can effectively reduce the turret interference and meet the precision cutting requirements of various large-size disc-type workpieces.
The specific application for twins vertical lathe CNC:
- Automatic batch production of various disc-type, short-axis-type workpieces.
- Precision machining of various parts such as hubs, gears, bearings, etc..
- Composite machining of various complex-shaped parts
Product Parameters
| ARGUMENT

ITEM	UNIT	TS-VTL550	TS-VTL750
MAX. SWING DIAMETER	MM	470	600
MAX. TURNING DIAMETER	MM	400	500
SPINDLE SPEED	RPM	1000/2000	1000/2000
X/Z AXIS STROKE	MM	220/760	340/780
X/Z AXIS FAST MOVE SPEED	MM	24000
REPEAT POSITIONING ACCURACY	MM	0.005/0.008
ACCURACY POSITIONING	MM	0.008/0.01
SPINDLE MODEL		A2-6, A2-8,A2-11
SPINDLE POWER	KW	15	18.5
CHUCK SIZE	10INCH	10	18/21
CHUCK TYPE		hydraulic
TOOLING TYPE		SERVO TURRET / ROW TYPE/SPECIAL TOOL
PROCESS ACCURACY		IT5-IT6	IT5-IT6

Detailed Photos
| DETAIL PRESENTATION

STRUCTURAL DESIGN

THREE- JAW CENTERING CHUCK

Using servo turret/tailstock, the left and right sides of the HIWIN linear guide use independent control systems. Firm clamping, high-pressure chip punching, equipped with chain-type chip removal system, excellent chip removal performance.

FULLY STAINLESS STEEL INTERIOR PROTECTION

Large torque, large chip margin of about 7mm on average according to different materials, high-efficiency processing while ensuring accuracy and stability.

THICK AND WIDENED LINEAR RAIL SCREW

Heavy-duty host structure design, precision bearings, and ultra-high rigidity ensure stable precision.


CNC SYSTEM OPTIONAL
Tight stainless steel internal protection, 45-degree tilted base chip removal design, and high-pressure chip punching ensure a comfortable use experience.

High-rigidity heavy-duty structure, large cutting volume processing,robot automation adaptation,
vertical lathe cnc series,
focusing on buil ding strong stability, rigorous structural design and material usage.







Certifications
| CERTIFICATES & ACTIVITIES


Recognized as China's leading manufacturer of CNC machine tools for double-sided processing,
backed by hundreds of technical patents, specializing in drilling, milling, and turning shaft parts with exceptional precision.
Our high-quality positioning machine tool products are highly esteemed by users in developed countries worldwide.
