High Quality Four Roll Rubber Calender Rubber Machinery

Product Description

Product Description
The rubber calender is one of the basic equipment in the processing of rubber and plastic products, and the calender belongs to the heavy-duty high-precision machinery in the rubber and plastic machinery. The basic structure of the rubber calender is very similar to that of the plastic calender, and the working principle is basically the same. However, due to the fact that many rubber products are composite products containing cord and steel wire, the structure of the rubber calender is more complex, the scope of use is wider, and the types are more diverse. The rubber calender is mainly used for the pressing of rubber sheets, the coating of textiles or steel wire cord fabric, the bonding of rubber sheets, the pressing of rubber molds, and the bonding of isolation film for tire cord layers.In addition to the rollers and related components (such as the frame, roller spacing adjustment device, and transmission system) in the rubber calendering machine structure, there are also auxiliary devices for rubber calendering machines. The auxiliary devices for rubber calendering machines are used to assist in the processing of the forming materials (such as rubber compounds and fiber fabric) during calendering, so that the calendering machine can perform the calendering operation with better performance. These auxiliary devices are located near the calendering machine or are directly assembled on the calendering machine, and the configuration of these auxiliary devices varies depending on the calendering process and the level of calendering equipment. Some of the commonly used auxiliary devices for rubber calendering machines include blocking devices, edge trimming devices, cutting edge trimming devices, bubble marking devices, fabric expansion and edge expansion devices, and feeding devices.
Detailed Photos

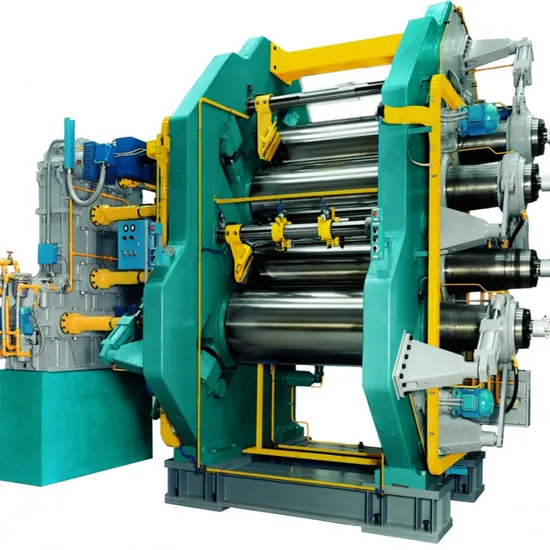

The calender mainly consists of a base, frame, rollers, speed ratio gears or universal joints, hard-toothed gear reducer, variable-frequency motor, variable-frequency drive, electric adjustable distance device, emergency safety brake device, built-in bearing device, cooling and heating device, and lubrication device with oil or grease. The roller rotation speed is adjusted by the variable-frequency drive to meet the requirements of rubber sheet production.
The rubber calendering machine is mainly used for rubber sheeting for rubber products factories such as shoe factories and ball factories, and can also be used for double-sided adhesive coating, single-sided adhesive coating, and wiping adhesive for rubber products factories. It can also be used for double-sided adhesive coating for steel wire cord. Its applications are very wide.Product Parameters

	XY-4φ230*630	XY-4φ360*1120	XY-4φ400*1200	XY-4φ450*1400	XY-4φ610*1730	XY-4φ700*1730	XY-4φ710*2130	XY-4φ800*2500	XY-4φ860*2500
Working diameter of rollers(mm)	230	360	400	450	610	700	710	800	860
Working length of rollers(mm)	630	1120	1200	1400	1730	1850	2130	2500	2500
Speed ratio of front and rear roller	1:1:1	0.73:1:1:0.73	1:1.38:1.38:1	1:1.5:1.5:1	1:1.4:1.4:1 1:1.4:1.4:1.4	0.5~1 Adjustable	1:1.5:1.5:1	0.5~1 Adjustable	0.5~1 Adjustable
Middle-roll linear speed(m/min)	2.1~21	2~20.1	3~26.3	2.5~25	8~50	4~40	3~30	4~40	4~40
Adjusting nip range(mm)	0~10	0~10	0~10	0~10	20	0~30	0~20	0~30	0~30
Min product thickness(mm)	0.2	0.2	0.2	0.2	0.15	0.2	0.15	0.2	0.2
Production calendaring width(mm)	500	920	1200	1250	1500	1600	1900	2200	2200
Motor power(kw)	15	55	75	110	185	90KW*2 110KW*2	220	132KW*4	160KW*4
Overall size L*W*H(mm)	3800*930*1890	3300*940*2350	6400*1620*2490	6500*1970*2740	6580*2460*2920	9950*3600*4870	7010*4150*3730	10400*3900*5140	12000*3800*5850
Weight(t)	~4.8	~16	~20	~23	~50	~110	~100	~130	~180

Certifications
Company Profile
Qingdao Junlin Machinery Co., Ltd. is a company engaged in rubber machinery, shoe machinery research and development and manufacturing enterprises, located in the west coast of Qingdao, Shandong, China, the geographical environment is superior.
The company gathers a large number of outstanding technical and management talents in the industry, with advanced machining equipment and precision testing instruments. Relying on high-quality service, advanced equipment and excellent technical strength, through continuous innovation and development, Junlin Machinery has established a stable business relationship with many customers at home and abroad, and gradually established a brand position in similar enterprises.
The main products of the company are: open rubber mixing machine series, waste tire rubber recycling production line series, calender, extruder, filter rubber machine series, film cooling line series, plate vulcanization machine series and so on.
Our Advantages
The company has T150 large floor boring machine, 2m×6m large planer milling machine, MQ1350A×3000 cylindrical grinding machine, M7150×2000 surface grinding machine, C62100B×5000 large lathe, C61110×3000 large lathe, C6180×3000 large lathe, C6125×3000 large car Bed, T611B horizontal boring machine, CNC lathe and a series of advanced processing equipment, according to customer requirements to produce a variety of special rubber machinery equipment.
