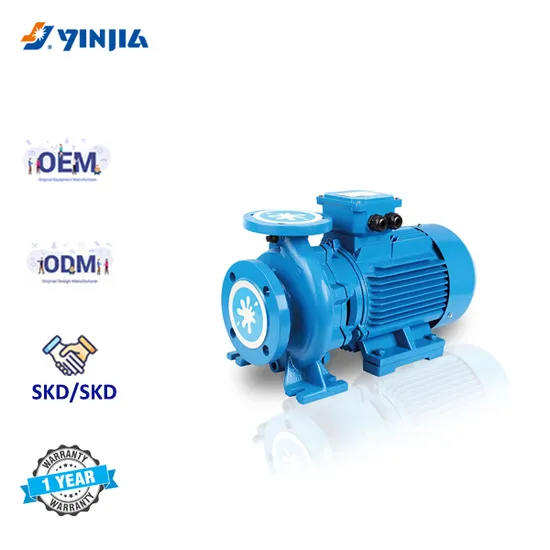

High Flow 3kw Motor Pump Industrial Centrifugal Water Pump for Fire Fighting System

Product Description

APPLICATION -To be used for a wide variety of applications in civil, agricultural, industrial or general plant uses. -Water Supply, spray or flowing irrigation, autoclave feed, high pressure system, heating, conditioning and any other general service requiring transfer of clean liquids.
OPERATING LIMITS -Temperature of liquid from -10ºC to +120ºC -Ambient temperature from -10ºC to +40ºC -Max operating pressure: 10 bar	PERFORMANCE RANGE -Speed : 1450/2900 rpm -Max.Flow :216 m³/h -Max.Head :100 mt. -Power range: 1.5-22KW -Inlet/Outlet: 50*32mm-100*80mm
DESIGN FEATURES -Pump body/motor bracket: cast iron -Impeller: cast iron -Bearing: C&U -100% copper winding -Mechanical seal:Carbon/SiC/NBR/SUS304 -Motor shaft:AISI 304 welded shaft	SPECIAL FEATURES ON REQUEST -Anti-rust treatment for casting -AISI 304 pump body -AISI 304 or Brass impeller -AISI 1045 motor shaft -Other voltage and frequeNcy -Insulation class F
MOTOR -2-pole induction motor -Insulation class: B -Protection :IP44 -Continuous duty: S1

FAQ Q: Are you a factory or trading company?A: We are a professional surface water pump manufacturer since 1990, located in Fuan, Fujian, China.
Q: Do you provide OEM/ODM service?A: Yes, we are premium OEM/ODM manufacturer which assessed by independent third parties.
Q: What is the feature of your products ?A: Our products have 3 obviously features: quite, powerful, heavy duty.
Q: What is your MOQ ?A: 100 pcs per model for factory brand and package. 300 pcs per model for OEM brand and package.
Q: How do you control the quality ?A: All production process strict to follow ISO9001 system, QC team check the quality during the production and do the test before each shipment.
Q: What is your delivery time?A: 15 days for sample order, 30 days for container order. ( Busy season may need more days )
