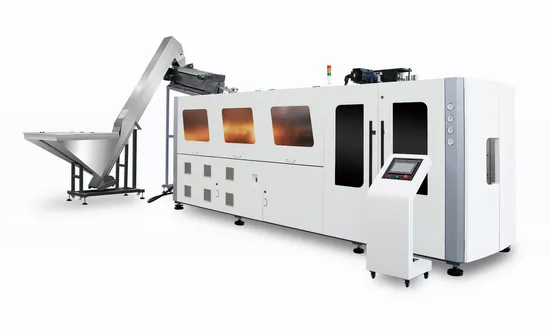

Full Automatic High Speed Linear Blow Moulding Machine Non Stop Heating Mineral Water Bottle Blower

Product Description

Our Advantages
1 .The machine use continuous rotation system with multiple safety protection devices to ensure the high speed preform feeding.
2.The preform feeding without turning device, simple structure, convenient maintance, reduce cost of spare part change.
3.The heating pitch between the preforms is small.effectively using the heating space of the lamp tube,and improving the heating efficiency enery saving by variable pitch structure.
4.The water runs directly through the heating channel with air cooling system to protect preform neck from deformation.
5.Optimize oven air draft and preform surface cooling.Reversible heating box make it more easy to change lamp.
6.Mould closing adopts CAM linkage,no chain plate pin shaft small size, long service life.
7.The stepping servo motor ensure high-speed operation and accurate positioning.
8.Servo moto is used to drive the stretching and blowing station,equipped with high speed precision
blowing valve set to achieve high production requirements.
9.Stainless steel pipe make the air blowing more clean without pollution.
10.High pressure recycle system reduce power consumption.
11 .Multiple direction positioned for the autoloader make it more flexibly for installation.
12.The machine is desighed to be compact in size.effectively reducing floor space.
Technical Parameter

ITEM		UNIT	TSPL7-1.5L
CONTAINER	Max.container volume	L	1.5
	Max.neck outer diameter	mm	30
	Max.container diameter	mm	90
	Max.container height	mm	330
	Number of cavity	pcs	7
	Theoretical output	bph	10000-12000 based on 1.5L
	Mold center distance	mm	80
ELECTRICAL	Max. heating power	kw	80
	Servo motor power	kw	17
	Other motor power	kw	5
	Total power	kw	102
COMPRESSED AIR	Operating pressure	Mpa	0.7
	Low pressure air consuming	L/min	1000
	Blowing pressure	Mpa	≤3.5
	High pressure air consuming	L/min	10000
CHILLER WATER	Pressure	Mpa	0.3-0.5
	Temperature	ºC	15-20
	Flow rate	L/min	50
MACHINE DIMENSION	Size(L*W*H)	m	5.8 × 1.5×2.6
	Weight	kg	6000

Main configuration

Model name	Brand and origin
PLC	DELTA(CHINA TAIWAN )
Touch screen	DELTA(CHINA TAIWAN )
Servo motor	DELTA(CHINA TAIWAN )
Inverter	DELTA(CHINA TAIWAN )
Contactor Switch	SCH NEIDER(FRANCE )
Photoelectric Switch	AUTONICS( KOREA)
Proximity Switch	IFM( GERMANY)
Magnetic Switch	AIRTAC (TAIWAN)
Breaker	SCH NEIDER(FRANCE )
Acting valve	FE STO(GERMANY)
Blowing valve	SEITZ SWIFZERLAND (SWITZERLAND)
Cylinder	AIRTAC (TAIWAN)
Silencer	ALWITCO(USA)
High pressure filter	OMEGA( ITALY)

Machine Footprint
