Laboratory PP Pipe Vacuum Sizing Simulation Production Test Line
| US$8,000.00 | 1 Piece (MOQ) |
Basic Info.
Screw No.
Double-screw
Automation
Automatic
Computerized
Computerized
Certification
CE
Customized
Non-Customized
Condition
New
After-sales Service
a Lifetime
Sizing Way
Vacuum Sizing
Cooling
Water
Pipe Size
Inner 10mm, Outer 12.5mm
Mode of Traction
Belt Traction
Power Supply Voltage
1-Phase 220V
Transport Package
Plywood
Trademark
Hapro
Origin
China
HS Code
9024800000
Production Capacity
100/Year
Product Description

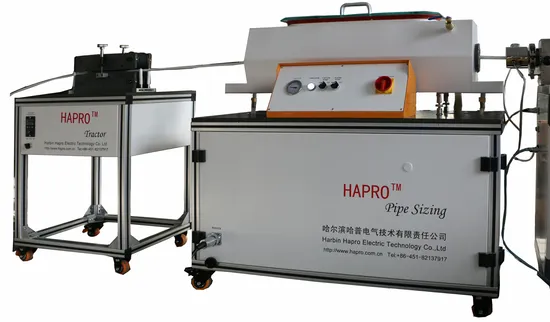

When material comes through Pipe die ,Pipe extrusion can be directly into the vacuum sizing tank ,After cooling and vacuuming, the pipe is formed and fed into the tractor.After vacuum pumping and water cooling, PVC or PE and other thermoplastic polymer material pipe forming, customers can reduce after further physical testing, such as tensile test
| Pipe sizing | |||
Inner Pipe diameter | Ф10 mm | Outer Pipe diameter | Ф12.5 mm |
Power supply | AC,220V | Total power | 1.7 kW |
Sizing | Vacuumize | Cooling | water |
| Dimension (L×W×H) | 1200×600×1000 mm | Weight | 200 kg |
The pipe tractor is pulled by belt friction, and then the pipe is cut into the size required by the customer by the pipe cutting pliers for subsequent physical experiments, such as tensile test, etc
| Pipe Tractor | |||
Traction speed | 0.24~2.5 m/min,Manual adjustment | Mode of traction | Belt traction |
Power supply | AC,220V | Total power | 1.7 kW |
Weight | 100 kg | Dimension (L×W×H) | 1200×600×1000 mm |
