Factory Price 1000 Liters Emulsion Paint Dissolver High Speed Disperser Hydraulic Lifting

Product Description

Products DescriptionDisperser for mixing liquid paintDisperser is designed to mix medium hard materials in liquid media. Dissolver is used for the production of paints, adhesives, cosmetic products, various pastes, dispersions and emulsions, etc.
Dispersers can be made in various capacities. Parts and components in contact with the product are made of stainless steel. At the request of the customer, the equipment can still be assembled with an explosion-proof drive
The disperser is equipped with one or two stirrers - high-speed gear type or low-speed frame. This gives advantages in the processing of viscous materials. It also increases productivity and the quality level of dispersion. This design of the dissolver allows you to increase the filling of the vessel up to 95%. Filling with recyclable material to this concentration occurs when the funnel is removed. In addition, heat transfer is improved.
The disperser has the functions of dispersing and stirring, and is a product for mass production; it is equipped with a frequency converter for stepless speed regulation, which can run for a long time, with stable operation and low noise; the dispersing disc is easy to disassemble, and different forms of dispersing discs can be replaced according to the process characteristics; the lifting structure adopts hydraulic cylinder as the actuator, the lifting is stable; this product is the first choice for solid-liquid dispersion and mixing.
The disperser is suitable for the production of various materials, such as latex paint, industrial paint, water-based ink, pesticide, adhesive and other materials with a viscosity below 100,000 cps and a solid content below 80%. The disperser is available in various sizes and models, and the parts in contact with the product, such as the stirring tank and the dispersing disc, are made of stainless steel. According to customer requirements, explosion-proof motors can be used as driving motors.
The maximum speed of the equipment can reach 1450rpm, and the line speed is above 20m/s, which can quickly and evenly disperse the powder into the liquid material; the material is evenly dispersed due to the extremely high shear force, forming a good Levitation effect. Working principle:
Through the high-speed rotation of the dispersing disc, the material flows in a circular shape, generates a strong vortex, and descends to the bottom of the vortex in a spiral shape. Strong shear impact and friction are generated between particles to achieve the functions of rapid dispersion, dissolution, uniform mixing and emulsification.
The hydraulic plunger is driven up and down by the hydraulic pump, driving the entire transmission mechanism and the working group up and down.
Specification

Model	Power (kw)	Rotating speed (r/min)	Dispersion disc diameter (mm)	Container volume/Processing capacity (L)	Hydraulic motor power (kw)	Lifting height of cutter (mm)	Weight (kg)
FS-4	4	0-1450	200	≤200	0.55	900	600
FS-7.5	7.5	0-1450	230	≤400	0.55	900	800
FS-11	11	0-1450	250	≤500	0.55	900	1000
FS-15	15	0-1450	280	≤700	0.55	900	1100
FS-18.5	18.5	0-1450	300	≤800	1.1	1100	1300
FS-22	22	0-1450	350	≤1000	1.1	1100	1400
FS-30	30	0-1450	400	≤1500	1.1	1100	1500
FS-37	37	0-1450	400	≤2000	1.1	1600	1600
FS-45	45	0-1450	450	≤2500	1.5	1600	1900
FS-55	55	0-1450	500	≤3000	1.5	1600	2100
FS-75	75	0-1450	550	≤4000	2.2	1800	2300
FS-90	90	0-950	600	≤6000	2.2	1800	2600
FS-110	110	0-950	700	≤8000	3	2100	3100
FS-132	132	0-950	800	≤10000	3	2300	3600

Successful Project
Customer Feedback
Company Profile
Zhengzhou Corin Machinery Co.,Ltd.CORINMAC Co., Ltd. is located in Zhengzhou National High-tech Industrial Development Zone, specializing in the development, manufacturing and supply of dry mortar mixing equipment, industrial grinding equipment, sand and gravel drying equipment, concrete batching plants, packing machine and other building materials production equipment, etc. Certificates

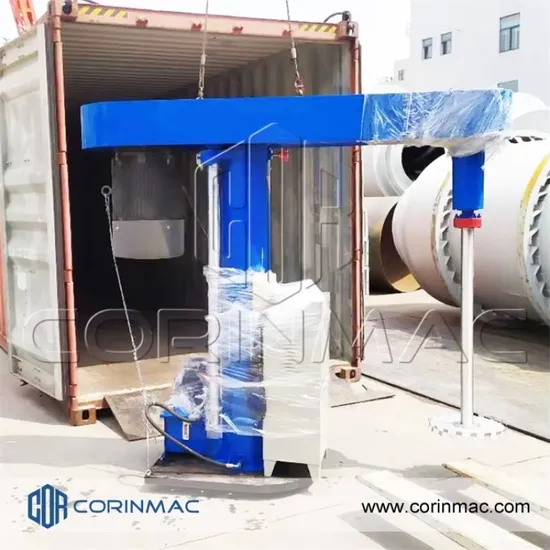

Product packaging
