Automatic CE Approved Jwc Containers Making Machine Under Pad Production Line

Automatic CE Approved Jwc Containers Making Machine Under Pad Production Line

US$500,000.00-650,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
JWC-CFD-SV
Real Running speed
350-400PCS/min
Automatic Grade
Automatic
Certification
CE, ISO
Condition
New
After-sales Service
Field Installation, Commissioning and Training
Model
Jwc-Cfd-Sv-35
Computerized
Yes
Product Size
Width 600-900mm
Working Speed
280m Per Min
Installation Capacity
340kw
Certificate
CE, SGS
Machine Size
24*8*5m
Feature
Full Servo Drive
HS
8441809000
Transport Package
Containers
Specification
20GP 40HQ
Trademark
JWC
Origin
China
HS Code
8441809000
Production Capacity
30 Sets

Product Description

JWC-CFD-SV Full Servo Under Pad Machine Production Line Export to Germany
Product Description

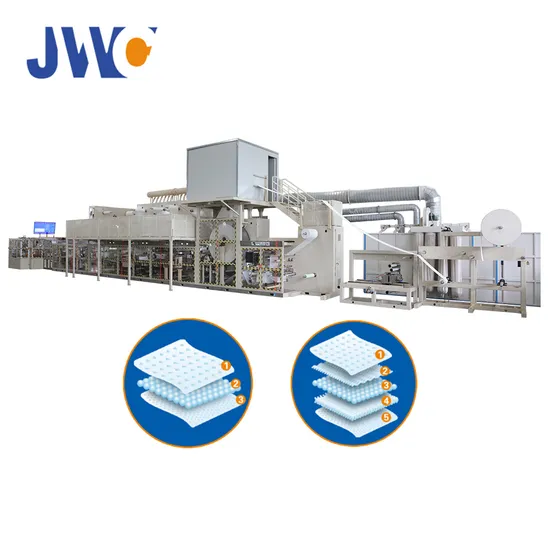

This Disposable Under Pad Machine includes main machine, glue applicators, packing system and other accessory equipment including air compressor, vision detection system and metal detection machine etc. This Machine can produce 3&5 layers under pad. This production line can realize 100% full automatic control.
1. Machine frame Reasonably solid square steel frame
2. Crusher system
3. Fluff forming system
4. SAP feeding system
5. Bottom tissue feeding, roll diameter φ800mm
6. Upper tissue, roll diameter φ800mm
7. Back sheet PE film feeding, roll diameter φ600mm
8. Top sheet hydrophilic non-woven feeding, roll diameter φ800mm
Product Parameters
1 Design speed 300 meters/min
2 Stable working speed 280 meters/min (treated pulp, fluff GSM 40-80/M2)
3 Qualified rate 97%
exclude the wastage due to the glue applicators and materials splicing joint
4 Efficiency 85%
5 installation capacity 340KW
7 Electricity 380V 5% 50HZ
8 Wire Three phases four wires 380V/50Hz (ground wire)
9 Air pressure 0.6Mpa
10 Total weight About 80tons
11 Machine size 24*8*4.5 M(L*W*H)
12 Working space 30*11*6 M (L*W*H)
13 Machine color Rice white ,can be changed by order
14 Product size Width: 450-600mm to be customized, length is 450-1500mm to be customized
15 Containers 4X40HQ
Features at a glance
Auto lubricating System
Auto lubricating for the cutter units ,can make the machine have better cutting effect and extend the life of cutter system
Human-Machine Interface
Working speed(piece/min), single producing output, monthly output,annual output, counting quantity and products' passing rate can show on the screen
Materials automatic feeding System
Main raw materials adopt auto unwinding, auto splicing, tension control, auto FIFE web guider functions to guarantee the precise and stablility
Name Brand Origin
1 Servo motor Mitsubishi Japan
2 Auto web guider FIFE USA
3 Touchable screen Banner USA
4 PLC controlling system Mitsubishi Japan
5 Sensor Banner USA
6 Safety production Shneider France
8 Cutter raw material M7 USA
9 Gear according to usage BEM/NSK/SKF Germany/Japan/Sweden
10 Timing belt Optibelt or Gates Germany/USA
11 Low voltage electronic Shneider France
13 Temperature controlling system Omron Japan
15 Pressure regulating valve Airtac Chinese Taiwan
16 Pneumatic element Airtac Chinese Taiwan
17 Solenoid valve Airtac Chinese Taiwan
18 Moisture separator Airtac Chinese Taiwan
19 Automatic fault alarm Mitsubishi Japan
