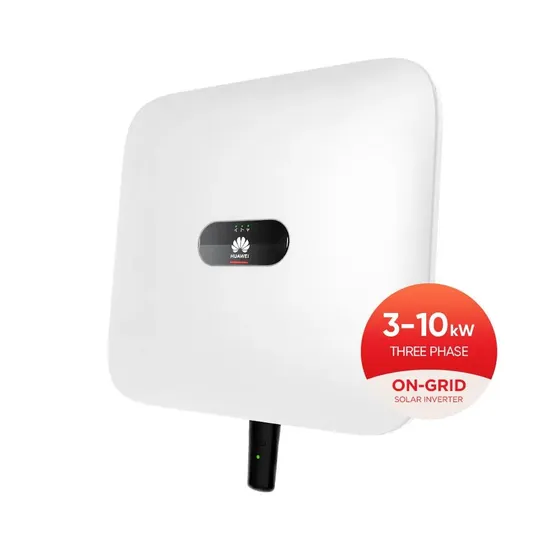

Huawei Inverter with Solar Panel Sun2000-5ktl-M1 5kw 6kw 8kw 10kw 12kw Three Phase Inverter

Product Description

Product Description
Product Parameters

Technical parameters	SUN2000-5KTL-M1	SUN2000-6KTL-M1	SUN2000-8KTL-M1	SUN2000-10KTL-M1	SUN2000-12KTL-M1
Efficiency
Maximum efficiency	98.5%	98.5%	98.65%	98.65%	98.65%
The input
Maximum DC input voltage	1100V
Start voltage	200v
Maximum input current per MPPT channel	11A
Full load MPPT voltage range	240Vdc~850Vdc	285Vdc~850Vdc	380Vdc~850Vdc	470Vdc~850Vdc	550Vdc~850Vdc
MPPT voltage range	160V~1000V
Rated input voltage	600V
Maximum input number	2
Number of MPPT	2
The output
Rated output	5,000W	6,000W	8,000W	10,000W	12,000W
Maximum apparent power	5,500VA	6,600VA	8,800VA	11,000VA	12,000VA
Maximum active power	5,000W	6,000W	8,000W	10,000W	12,000W
Rated output voltage	230Vac/400Vac,3W/N+PE
Output voltage frequency	50HZ/60HZ
Maximum output current	8.6A	10.3A	13.6A	17A	18.5A
Maximum total harmonic distortion	<3%
Protection
Input DC switch	support
Afci DC arc protection	support
Anti-islanding protection	support
Output overcurrent protection	support
Output reverse connection protection	support
String fault detection	support
DC surge protection	support
AC surge protection	support
Insulation resistance detection	support
Residual current monitoring	support
Grid monitoring	support

Detailed Photos String inverters transform the direct current (DC) from your PV panels into an alternating current (AC) that can be fed into the electrical grid.String inverters are mostly used in residential and commercial solar projects such as rooftop, carport, ground mount and tracker installations. String inverters come in a power range between 3kW and 300 kW.
