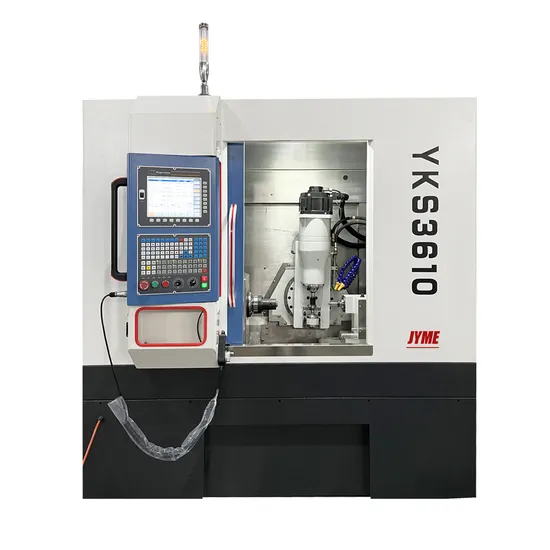

Yks3610 Horizontal CNC Gear Hobbing Machine, High Precision Gear Hobbing

Product Description

YK3115-II High-speed CNC gear hobbing machine
Through the CNC system's built-in electronic gearbox (EGB) function and the self-developed gear hobbing machine software, the hob, workpiece and related process parameters are input through the form-filling programming for processing
Suitable for processing various toothed pieces, worm gears, drum gears and splines, etc.
This machine can process up to 3 modules and a diameter of 150mm. The overall rigidity of the machine tool is strong and the precision is stable. It can perform high-speed dry cutting, oil cutting and secondary processing of hardened gear surfaces;
Suitable for processing various cylindrical gears
This machine is equipped with five axes and four linkages as standard
B-hob spindle
C-workpiece spindle
X-radial feed
Y-tangential feed
Z-axial feed
·The four linkage axes are: B axis, C axis, X axis and Z axis;
·Optional sixth axis A axis automatic swing angle of tool holder
·Direct drive motor solution for workpiece spindle
Parameters

Main Specifications (please inquire/email us for more details )
Maximum workpiece diameter for machining	150mm
Maximum machining modulus	3m
Number of controlled axes	5 axis (6 axis optional)
Maximum clamping length of workpiece	450-680mm
Maximum tool rotation angle	±45°
Total motor power	12kw
Maximum hob installation diameter*length	φ100x120mm
Hob shifting stroke	100mm
Worktable end face diameter	150mm
Maximum hob speed (B axis)	2000rpm
Maximum worktable speed (C axis)	400rpm
Machine weight	5000kg
Machine dimensions (length x width x height)	2200x1600x2300mm
