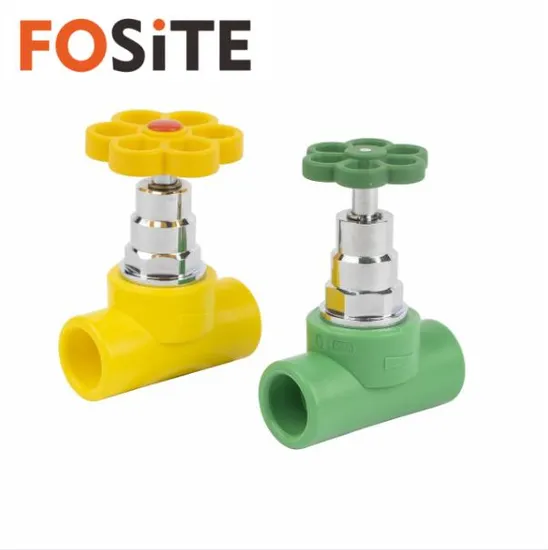

OEM Pn20 Pn25 Plumbing Building Materials Hot Water Fittings PPR Ball Valve

Product Description

Product Description
Color : white,green,gray or as your request Brand: fosite or OEM Pressure rate: PN25 for all ppr fittings Connect way: Melt welding or female Material: R200P ,4220 Application: water supply system Certification: CE,ISO,BV,Soncap certificationPPR pipe size:20,25,32,40,50,63,75,90,110,160PPR Pipe pressure rate: 1.0Mpa ,1.6Mpa.2.0Mpa.2.5MpaDetailed Photos
1. Non-toxic and hygienic.
The raw material molecules of the ppr pipe are only carbon and hydrogen elements, and there are no harmful and toxic elements. It is hygienic and reliable. It is not only used in hot and cold water pipes, but also in pure drinking water systems. 2. Heat preservation and energy saving.
The thermal conductivity of ppr pipe is 0.21w/mk, which is only 1/200 of that of steel pipe. 3. Good heat resistance.
The Vicat softening point of the ppr tube is 131.5 °C. The maximum working temperature can reach 95ºC, which can meet the requirements of the hot water system in the building water supply and drainage code.4. Long service life.
Under the condition of working temperature 70ºC and working pressure (P.N) 1.0MPa, the service life of ppr pipe can reach more than 50 years (provided that the pipe material must be above S3.2 and S2.5 series); the service life at normal temperature (20ºC) up to more than 100 years.5. Easy installation and reliable connection.
The ppr pipe has good welding performance. The pipe and pipe fittings can be connected by hot melt and electrofusion, which is easy to install and reliable. The strength of the connection part is greater than the strength of the pipe itself.

Product Parameters
PPR Pipe Size & pressure rate details :

Unit/mm	PN 1.0MPa	PN 1.6MPa	PN 2.0MPa	PN 2.5MPa
Outer Diameter	Wall Thickness	Wall Thickness	Wall Thickness	Wall Thickness
20	2	2.3	2.8	3.4
25	2.3	2.8	3.5	4.2
32	3.0	3.6	4.4	5.4
40	3.7	4.5	5.5	6.7
50	4.6	5.6	6.9	8.3
63	5.8	7.1	8.6	10.5
75	6.9	8.4	10.1	12.5
90	8.2	10.1	12.3	15
110	10.1	12.3	15.1	18.3
160	14.6	17.0	20.3	26.6

PPR Pipe Special manufacture
1. offer gray ppr pipe,green ppr pipe,white ppr pipe .
2.offer size from 20mm ppr pipe to 160mm ppr pipe
3.offer : PN12.5 ppr pipe to PN25 ppr pipe
4.offer straight 4m ppr pipe and coil ppr pipe
5.offer OEM ppr pipe and fitting
Features:
1)Pressure Rating: 1.0Mpa,1.25MPa, 1.6MPa, 2.0MPa ,2.5MPa
2)Colors: Green, White, Grey, Red, Blue, Yellow and other color on request
3)Certification: ISO9001, CE, BV, SGS ,SONCAP
4)Produce Standard Standard: DIN8077/8078
5)Applications: for hot&cold drinking water supply system
6)Material: Random Polypropylene(Type 3)
7)Size(mm):20mm,25mm,32mm,40mm,50mm,63mm,75mm,90mm,110mm,160mm
Advantages:
1. High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius
2. Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe
3.Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
4.Corrosion Resistant: resist chemical matters or electron chemical corrosion
5.Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system
6.Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes
7.Long Life: more than 50 years under normal conditions
8.Recycled and Environment-friendlyCertifications
