High-Efficiency UL-Certified Fire Pump AC Electric Motor 22kw 2P GP020022

High-Efficiency UL-Certified Fire Pump AC Electric Motor 22kw 2P GP020022

US$600.00-800.00 1 Piece (MOQ)

Basic Info.

Model NO.
GP020022
Number of Stator
Three-Phase
Casing Protection
Closed Type
Number of Poles
2
Starting Mode
y-δ Starting
Certification
UL Firepump
Brand
KTZ
Framesize
180M
Output Power
22 KW
Voltage/Frequency
400-415V/50Hz
Sf
1.15
Cooling Method
IC411
Mounting Arrangement
B3,B35,B5,V1
Efficiency Level
IE3
Insulation Class/Temp.Rise
F/B
Protectionclass
IP55
Ambient Temp.
-10ºC~50ºC
Standard
UL 1004-5
Altitude
≤1000m
Air Humidity
≤60%at a Temp.of 50ºC
Rotor Structure
Squirrel-Cage
UL Certificate Number
Ex28277
Transport Package
Wooden Pallets
Specification
172 kg
Origin
Fuzhou City, Fujian Province, China
HS Code
8501520090

Product Description

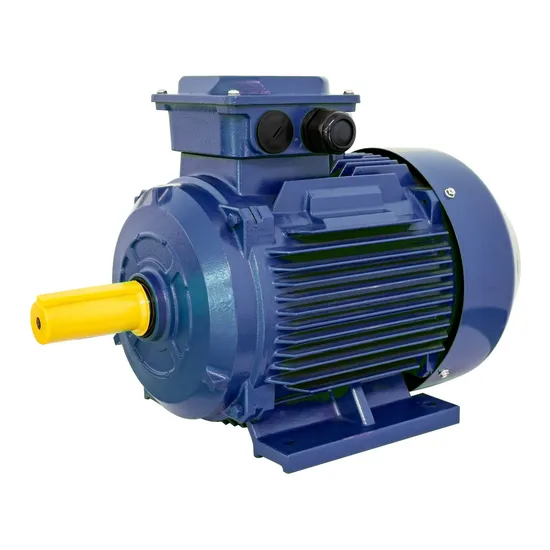

UL - Certified Fire Pump Motor
The UL - certified motors are totally enclosed fan - cooled squirrel - cage AC asynchronous motors. They have two service factors, 1.0 and 1.15. These motors are specifically designed for fire water pumps, featuring excellent performance, safety, reliability, and an aesthetic appearance.Detailed Photos
Product Parameters
Model NumberkwHzVoltsEFF %COSφFL AmpsSF 1.15 AmpsRPMLocked-rotor currentLocked-rotor Torque %FLTBreakdown Torque %FLTPull-up Torque %FLTKG
GP02001111 50400-41591.20.8819.622.5 2930≤146221.6109
GP0200151550400-41591.90.8826.630.6 2930≤184221.6119
GP0218F518.550400-41592.40.8932.537.4 2940≤231221.6136
GP0200222250400-41592.70.8938.544.3 2940≤275221.6172
GP0200303050400-41593.30.8952.360.1 2940≤3681.821.6223
GP0200373750400-41593.70.896473.6 2945≤4581.821.6242
GP0200454550400-415940.8976.888.3 2965≤5481.821.6302
GP0200555550400-41594.30.8993.5108 2965≤6751.821.6382
GP0200757550400-41594.70.89127.2146 2965≤9171.821.6515
GP0200909050400-415950.91155.1178 2965≤11071.821.6545
GP02011011050400-41595.20.91188.3217 2985≤13441.621.2930
GP02013213250400-41595.40.91222.4256 2985≤16221.621.2980
GP02016016050400-41595.60.91266.4306 2985≤19661.621.21090
GP02018518550400-41595.80.92307353 2985≤23871.61.7511140
GP02020020050400-41595.80.92333381 2985≤25691.61.7511190
GP02022022050400-41595.80.92364419 2985≤27401.51.7511250
GP02025025050400-41595.80.92414476 2985≤32211.51.7511802
GP02028028050400-41595.80.92464534 2985≤36081.51.7511250
GP02031531550400-41595.80.92522600 2985≤40581.51.7511802
Applications
Suitable for construction machinery, mining equipment, large agricultural equipment fans, pumps, compressors and other industrial equipment Our Service
Company Profile
Test center
Our new laboratory has a strong experimental capacity, including three-phase AC asynchronous motor, variable frequency adjustment motor, AC synchronous motor, single-phase asynchronous motor. Power range :0.25-500KW, frequency :0-500Hz. Can test all motor performance items, high precision and simple control.Exhibition

Certifications
FAQ
Q Are you a factory or trading company?A We are manufacturer located in FuZhou,Fujian,China Q Do we make special custom motors?A Yes sure Q What is your delivery time?A Normally, we can deliver the goods within one month. If we need to expedite the delivery, we can deliver the goods within 7-15 days Q What's our minimum order quantity?A Minimum order for 1 set Q How long is our shelf life?A 12 months Q Can I get a lower price if I order large quantities?A Yes, cheaper prices with more bigger quantity orders. Q How can you guarantee the production quality ?A We checked strictly before sending, will produce free of charge if it is quality problem from our side
