Comforter Chain Stitch Quilting Machine Computer High Speed Automatic Shuttle Machine for Mattress

Product Description

Product Description

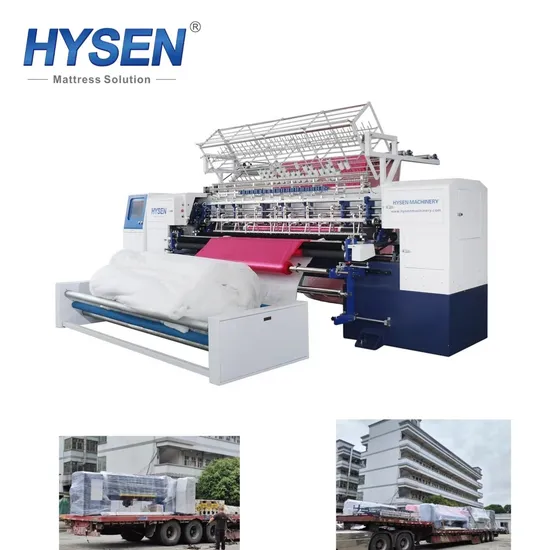

HSY80 Computerized High Speed Shuttle Multi-Needle Quilting Machine,The needle row movement adopts the needle bar frame structure, without additional refueling, thus avoiding the phenomenon of oil-contaminated fabrics. This structure is more solid and not easy to be damaged, low maintenance cost. The main shaft adopts frequency conversion control device. The production speed can reach 70-180m/h, the spindle speed can reach 400-1000rpm, and it can be quilted multiple times (covering 360 degree and 180 degree quilting patterns). Advanced thread-breaking technology, automatic stopping when thread breaks. Adopt CAD drawing method, precise graphics, convenient and quick. Running status detection and prompting, the operation of the machine is clear at a glance. Four-axis drive machine is more solid performance is more stable.
Product Function
1.Advanced and practical up thread-break detection technology,auto-stop when thread-breaking.
2.Hand proximity to infrared sensors makes your operation safer.
3.CAD drawing method is used for accurate graphics and convenience.
4.The four-axis actuator is more solid and stable performance.
5.Running status detection and prompting, the machine's operation can be seen at a glance. Product Parameters

Model	HSY80
Dimension(l*w*h)	4250x2450x2550mm
Quilting Width	2000mm
Space Between Needle Rows	76.2
Space Between Needles	25.4
X-axis Movement Displacement	305
Quilting Thickness	≤30mm
Stitch Length	2‐6
Production Speed	70-180m/h
Model of Needle	14#/16#/19#
Main Shaft Speed	400-1000RPM
Power	6KW
Volatge	380V/50H 220V/60H
Gross Weight	4300Kg

Product Details
If you want to know more detailed products, please click
https://hysenmachinery.en.made-in-china.com/product-list-1.html

Advanced and practical up thread-break detection technology,auto-stop when thread-breaking.	The saddle and roller are driven by servo and the main shaft is controlled by frequency converter.
Multiple cross quilting (covering 360-degree and 180-degree quilting patterns)	Easy preparation of CAD drawings extremely precise.

Application Range:Mattress,Textiles,Clothing,Bed spreads,Bedding,Comforters and so on.
Our Advantages



Company Profile

Dongguan Hysen Machinery Co.,Ltd. specializes in manufacturing quilting machines, the company has standardized production plants,advanced production equipment,and a group of senior engineers and professional technical developers,forming a complete scientific research,design,production,sales and service system.We have more than 20+ years of production experience, we supply series of product and professional service to numbers of known companies.At present, the main products are quilting machine,automatic four-side hemming machine ,computerized panel cutting machine and tape edge machine , etc.Various products have passed the National Patent Office and CE certification.The products have been sold abroad to Asia, E-urope, America and Africa , etc.We hope we can build the good relationship with the customers all over the world.With cost-effective products and thoughtful warm service to exchange for trust and support, mutual benefit, create a win-win situation!

Packaging & Shipping

Certifications

FAQ
1.Q:Why Choose Our Company?
A:We have more than 20+ years of production experience, we supply series of product and professional service to numbers of known companies.
2.Q:How's the after-sale service?
A:We have a one-year warranty.Warranty period parts damage support free replacement, excluding shipping costs.
3.Q:ls the price offered changeable?
A. We offer reasonable price for every client, and the price is changeable according to purchasing amount.
4.Q: How about the quality?
A: The main subassembly and raw matetials are all supplied by large companies. Key parts are research and developed by our own staff. profesional assembly line work and strict quality test system can ensure your high quality reguirement.
5.Q:Availability of spare parts.
A:Spare parts we usually stock, but it depends on your needs!
6.Q:Are you a manufacturer or trading company?
A:We are a professional manufacturer holding our own intemational Trade Depalment,for that we can beter understand customers needs and ofer a reasonable price.
