Grindining & Lapping of Seats in Safety Relief Valves Caminix High Quality Chinese Famous Brand

Product Description

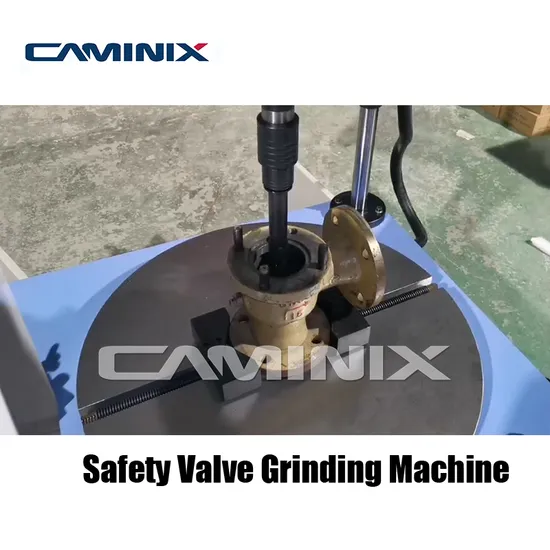

W200 Safety Valve Grinding Machine DN25-DN200
Brief Introduction of Safety Valve Grinding Machine
The fully automatic dynamic grinding machine for safety valves is suitable for grinding the seats and discs of various flat surface metal sealing safety valves.
Equipment characteristics
1. Desktop structure, beautiful and generous appearance, stable and durable.
2. Simple operation and high grinding efficiency.
3. Two station grinding is divided into two parts: valve seat grinding and valve disc grinding.
4. After setting the working parameters, there is no need for operators to be on duty during the grinding process.
5. Valve seat grinding and valve disc grinding can work independently at the same time.
6. The valve seat grinding adopts the valve seat rotation method, and the positive and negative rotation can be set.
7. The grinding head and the mechanical arm can move up and down, left and right at will.
8. The positive and negative rotation of the valve disc grinding plate can be set, and the valve disc moves on the grinding plate. With the grinding baffle, the movement trajectory can be adjusted, and multiple small valve discs can be ground simultaneously.
9. The grinding motor adopts a servo motor and a stepless speed controller. The grinding speed can be set within a range.
Technical parameters

Rough grinding disc diameter	300
Fine grinding disc diameter	300
Safety Valve Grinding diameter	DN25~DN200mm (larger size can be customized if necessary)
Grinding station	Dual station
Grinding paste	200 400 600 800 2000
Power supply	AC220V, 50HZ
Minimum grinding height	1mm
Speed regulation range	0~50R/Min
Workpiece thickness deviation	± 0.05mm
Grinding roughness of workpiece	Ra0.8
Workpiece parallelism	0.03mm
Machine Dimension	1600*800*1600 (mm)
Net Weight	400KG

Please contact Caminix for more information.
