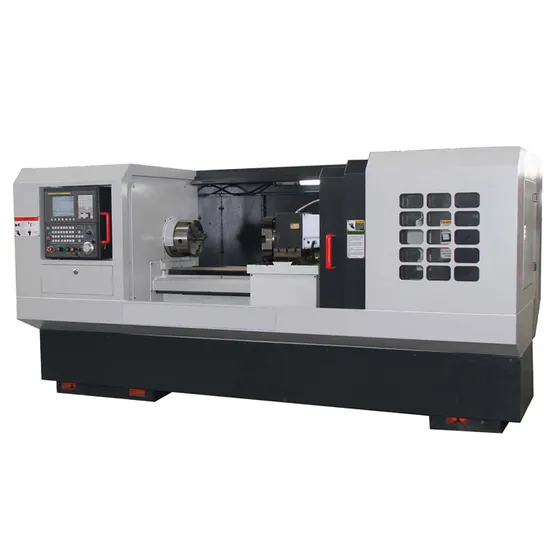

China CNC Turning Lathe Machine Ck6150

Product Description

China CNC Turning Lathe Machine CK6150 Machine Characteristics 1.Big torque, high precision spindle;
2.Hydraulic chuck, easy to operate;(Optional)
3.Z-Axis feed is directly connected which has high transmission accuracy and high positioning accuracy;
4.Vertical 4-position electric tool post with high positioning accuracy; Shank size: 25x25mm. Optional six-station electric knife
5.The machine is made of high strength cast iron with special material of copper and chrome. The width of bed guide is 400mm, the firing depth of bed guide rail is 4mm, which improves the abrasion resistance and stability of the machine.
6.HERG Centralized lubrication from Japan;
7.BAOTN Coolant system from Taiwan.
8.X-axis and Z-axis feed movement are servo motor drive precision ball screw to achieve fast-forward and feed movement. The machine adopts the Hanjiang ball screw, Z-axis ball screw(Dia.50mm), X-axis(Dia.25mm) ball screw with tensile structure, improve the accuracy of the workpiece machining cylindrical and bore size
9.Using Chinese famous brand Wafangdian bearings, spindle hole 80MM, the machine uses belt-driven stepless transmission, reducing machine noise and vibration

Specifications	CK6150
Max .Swing over bed	500mm
Max.swing over carriage	300mm
Max. Work piece Length	750/1000/1500/2000/3000mm
Spindle taper	MT6(Φ90 1:20)
Bed width size	400mm
Max.weight work piece between centers	300kgs
Chuck size	C6 (D8)
Thru-hole of spindle	52mm(80mm B type)(105mm C type)
Spindle speeds	21-1620rpm(I 162-1620 II 66-660 III 21-210)
Spindle nose	ISO, C6/D8
Tailstock center sleeve travel	150mm
Tailstock center sleeve taper	MT5
Positioning accuracy	0.03/1000MM, Max.0.05MM
Repeatability accuracy	0.006mm
Flatness	0.025/300mm
X/Z rapid traverse	4/6 m/min
Spindle motor	7.5kw
Rapid moving speed	X-5000mm/min Z--10000MM/min
Feeding rate	X:1-2000mm.min, Z:1--2000MM/MIN
Z--axis travel	600/850/1350/2850mm
X-axis travel	260mm
Coolant pump:	90w
Coolant pump	5m
Coolant pump fluit	25L/min
Tool holder no.	4
Tool shank size	25X25
Packing size (mm)	(L*W*H)
Overall dimensions for 750	2550*1550*1700
Overall dimensions for 1000	2750*1550*1700
Overall dimensions for 1500	3250*1550*1700
Overall dimensions for 2000	3700*1550*1700
Overall dimensions for 3000	4710*1550*1700
Weight (kg)	G.W. N.W.
Overall dimensions for 750	2120/2900
Overall dimensions for 1000	2240/3000
Overall dimensions for 1500	2350/3200
Overall dimensions for 2000	2740/3400
Overall dimensions for 3000	3600/4200

Standard accessories
1. GSK 980TDC CNC controller or SIEMENS 808D CNC controller
2. 3- jaw manual chuck diameter 250mm
3.center MS GB9204.1-88
4. Electric Lubrication
5. 4 Positions tool post
6. Work light
7. double ended wrench, hexagonal wrench, square box wrench,hook spanners.
8. screwdriver
9. manual tailstock
10.hand push oil gun
11. foundation bolts
12.English operation manaual of machine, automatic lubrication device instruction,CNC SYSTEM instruction,quality passed testing booklet.

Optional accessories
1. FANUC or SIEMENS CNC controller
2. Spring fastener
3. 6 positions tool post
4. hydraulic tailstock
5. hydraulic chuck
