Full Height Speed Gate Turnstile Face Recognition Card Reader Automatic Speedlane Doors Parts

Product Description

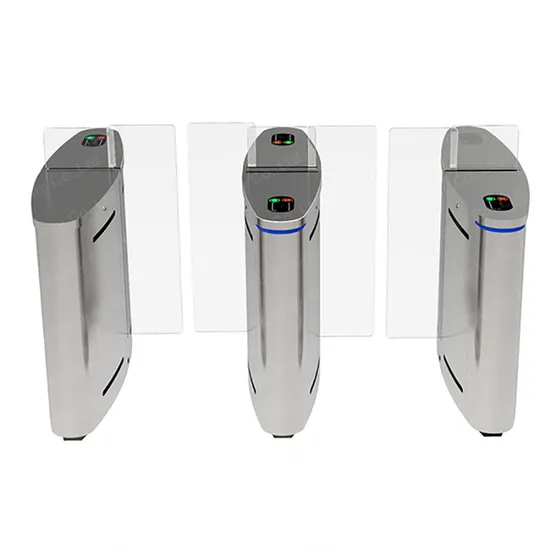

Full Height Speed Gate Turnstile Face Recognition Card Reader Automatic Speedlane Doors PartsProduct Description Speed Barreira RS 1007 fast transit speed,wing color,casing size and sensors number can be customized.Speed Gate RS 1007 also called Speedlane Turnstiles,Speed Doors,Sliding Turnstile ;Speed Turnstiles RS 1007 is upgrading products of flap turnstile, the wing hight up to 1432mm from ground.Speedlane Barrier housing shell is made of 3.0mm thickness 304 or 316 stainless steelSpeedlane Barrieres RS 1007 offers a reliable and efficient method to ensure only authorized users are allowed access to each area of a building.Sliding Barrier Turnstile RS 1007 consists of full height wings or half height wings,servo motor or dc brushless motor,sensors,mechanism,electric circuit,led lamp and so on.Speedlane Barrera anti-crawling,anti-climbing. mainly used in high security places like: Construction,University,Playgrounds,Supermarkets,Kindergarten,Residential and so on.Speed Tourniquets RS 1007 with standard fire interface,wing open for evacuation even power is not cut off when fire alarm triggere memory can be set ,swipe cards several times for group pass.Speed Torniquetes RS 1007 External third-party systems such as: smart cards,Visitor Counter,led screen,facical Identify,rfid cards,Ticket System and so on.
Product Parameters

Product Name	Speed Gate,speedlane turnstile
Model	RS 1007A
Brand	Bloccanter
Framework	304 Stainless Steel
Dimensions	330*1200*990mm
Passage wideth	850mm
LED indicating light	One
Card-reading window:	Two
Rated power	120W
Operating temperature	-25ºC ~ +60ºC, RH ≤90%
Related humidity	≥90%RH
Comunication Interface	RS485,distance ≤1200m
Power supply	AC 220V/110V ±10% 50/60MHZ (optional)
OpeningTransit speed:	30-45persons per minute
Closing Transit speed:	25-30 per minute

Function1. Adopting special ARM core micro CPU circuit and digital positioning technology, the stable start and control,the more accurate brake arm automatic control ability.
2. Smoothly Running, small noise, simple and reliable restructure.
3. The surface of the movement unit atopting anti-rust and anti-corrosion treatment, durable. Hydraulic movement unit is recommended for scenic spot ticketchecking advice.
4. Control panel with counting function, LCD/LED display function (optional)
5. High precision sensor group and intelligent recognition algorithm design can identify the number and direction of pedstrians in access very well, greatly improving the accuracy of anti-pinching and anti-trailing.Multi-point detection, more suitable for children or pedstrians with luggage going through.
6. Intelligent voice and sound prompts make the device more user-friendly and easier to use.
7. With auto malfunction inspection and alarm function, convenient for user maintenance and use.
8. Mechanical anti-pinch, infrared sensor anti-pinch function, in the process of turnstile reset obstruction, the motor automatically stop Operation within the set time, reseting after defacult delay time until the reset, small force(≤2kg).
9. Sound and light alarm function: including illegal break-in, trailing alarm.
10. Anti - impact function, the flap automatic locked without the open signal.
11. With automatic reset function, open the gate, the system will automatically cancel the user's access authority if the pedestrians no going through in the set time, automatic reset in 5 seconds after open.
12. Infrared sensor reset, infrared sensor anti-pinch function (standard 4 pairs of infrared ray).
13. After power off, the access automatically open and automatically closed after power on.
14. Available connection with access control system, consumer system, electronic ticket system, biometric identification system, electrostatic tester and other equipments.
15. Single-direction or Bi-direction control pedestrians access, infrared sensor access.
16. Available for remote control and management directly by computer.Feature
High quanlity material
304 high tempreture and conrrosion resistance durable dustproof and rain proof stainless steel.
Precision laster cutting.
Seamless gas welding technology.
Intelligent motherboard
access control setting from board by software
support upload to cloud or url.
support technical interface to app.
Access Control
it can be compatible with ic/id card,fingerprint machine,barcode,etc.
customized according to customer needs.
Alloy steel tripod hub
it unique mechnical drive design allow the arm to be pushed eff-lessly and auto-rotate.
Adjustable absorber controls rotation force to minimize loud sound and avoid over rotation.Detailed Photos
Application
