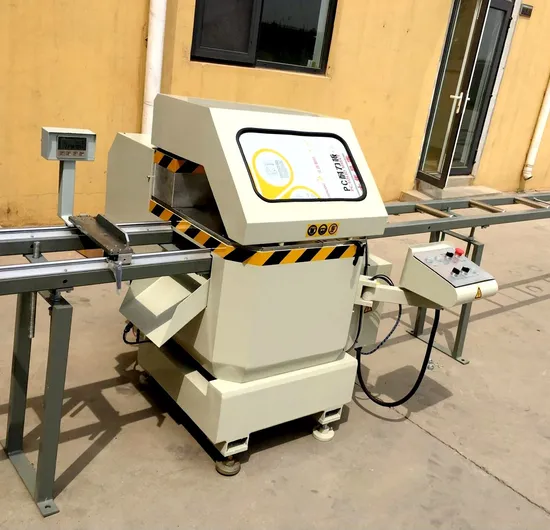

Arbitrary Angle CNC Aluminum Cutting Saw Machines Blade Circular for Window Single Head

Product Description

Arbitrary Angle CNC Aluminum Cutting Saw Machines Blade Circular for Window Single Head
Equipment features:
- Used for aluminum windows and doors profile cutting and for curtain wall profile cutting also for plastic profile
cutting.
- Adopted carbide alloy blade.
- This machine with up-feed blade and digital display positioning system(depending on request).
Equipment parameter:

Power supply	380V/50Hz
Cutting motor power	2.2kW
Motor rotary speed	3400r/min
Air pressure	0.5~0.8MPa
Air consumption	60L/min
Saw Blade specification	500×30mm*120P
Cutting width*height	max 400mm*150mm
Cutting angle	90 45 degree
Overall dimension	1500*1150*1600mm
Weight	about 500kg

Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation
training. All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do i need?
1)double head cutting saw
2)Lock hole copy milling machine
3)End milling machine
4)Automatic Corner connector automatic cutting saw
5)Single head Corner combining machine
